Item No.: 4100100060
Power Analyzer UMD 96EL 24 VDC
communication via ethernet
available by week: 3/2026
Merkmale
Depth [mm]
80
Width [mm]
96
Height [mm]
96
Weight [kg]
0,3
WEEE-Registrier-Nr. DE
35442862
Description

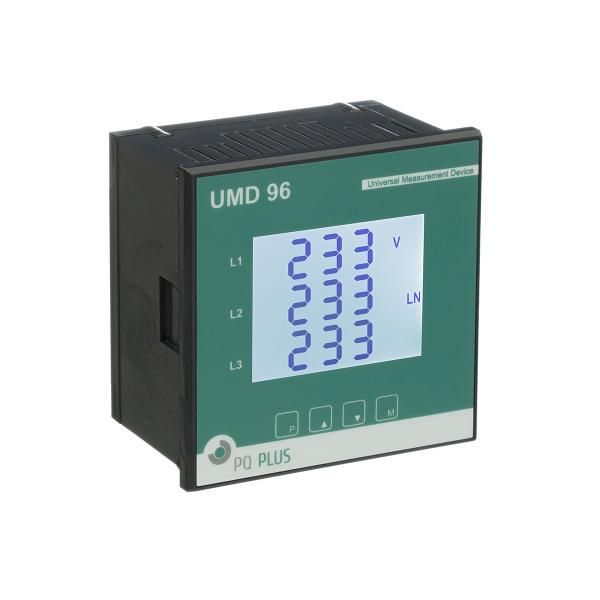

The UMD 96EL is a powerful front panel meter (96x96mm)
and replaces all analog meters. It measures 3-phase current
and voltage in 6-quadrant operation in class 0.2 and
thus the work in class 0.5s as well as all common network variables,
e.g. harmonics up to the 50th harmonic.
It can be measured via current transformers with N/5A and N/1A.
The universal measuring device has an illuminated, large and easy-to-read digital display.
It is conveniently operated via 4 function keys
