Sale
Item No.: 3601200027

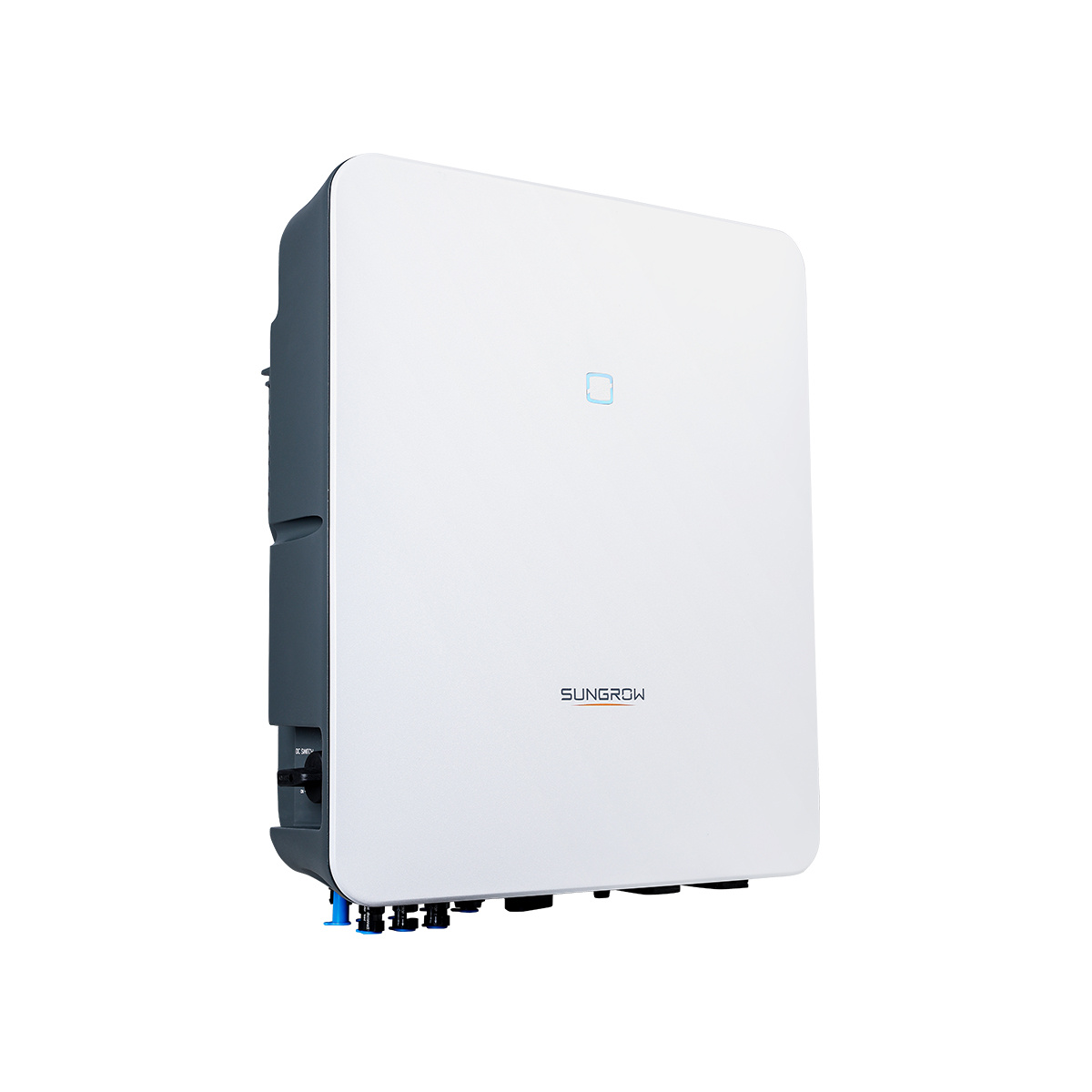

Sungrow SH8.0RT-20 V11
Hybrid Inverter 3~ only for IT and CH
available
Merkmale
Depth [mm]
170
Width [mm]
460
Height [mm]
540
Weight [kg]
27
Type of DC-connector
MC4
max. input voltage [V]
1,000
AC-nominal power [VA]
8,000
DC-nominal power [W]
8,175
max. efficiency [%]
98,4
Length of connecting cable [m]
2
number of grid input phases
3
number of MPP-trackers
2
Inverter technologie
HYBRID INVERTER
protection rating
65
Description
Hybrid storage inverter for self-consumption increase for Sungrow SBR and BYD HVM/HVS high voltage batteries
max 12 kWp PV power
max 8.000 VA output power
Standard warranty 10 years
Please note the country-specific service and warranty conditions of the manufacturer!
Sungrow energy meter and winet-dongle are included in this article.
Sungrow inverters in combination with Optimizers from Tigo: Please be aware that Sungrow currently allows only 20% of Tigo equipped modules per inverter string. Background is a possible undervoltage of the string.
max 12 kWp PV power
max 8.000 VA output power
Standard warranty 10 years
Please note the country-specific service and warranty conditions of the manufacturer!
Sungrow energy meter and winet-dongle are included in this article.
Sungrow inverters in combination with Optimizers from Tigo: Please be aware that Sungrow currently allows only 20% of Tigo equipped modules per inverter string. Background is a possible undervoltage of the string.
