Item No.: 3602000068

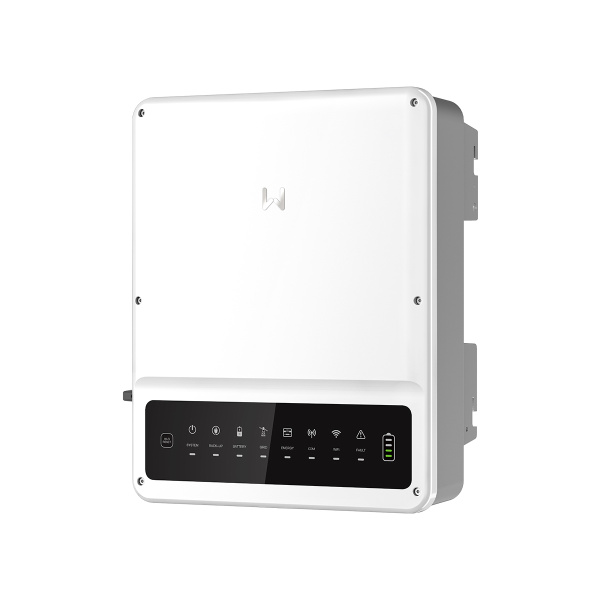

Goodwe GW5000N-EH Plus+ 16A
Hybrid Inverter 1~
10 pcs available
Merkmale
Depth [mm]
147
Width [mm]
354
Height [mm]
433
Weight [kg]
17,0
Type of DC-connector
MC4
max. input voltage [V]
580
AC-nominal power [VA]
5,000
3,600
DC-nominal power [W]
5,000
max. efficiency [%]
97,6
number of grid input phases
1
number of MPP-trackers
2
Inverter technologie
HYBRID INVERTER
protection rating
65
WEEE-Registrier-Nr. DE
33154372
Description
WLAN/Ethernet LAN (option with additional LAN-module)
DC-circuit breaker
according to VDE AR-N 4105
for grid connection
Degree of protection: IP65
euro efficiency: 97%
height x width x depth 433x354x147mm
max. DC power: 7500W
nominal power: AC 5000W
max. DC voltage: 580V
without Display
High voltage battery (for compatibility information please refer to the manufacturer's documents or to the IBC battery matrix)
Backup function
3-phase meter included (also usable for single phase systems)
5 years warranty
up to 10 years optional
Please note the country-specific service & warranty conditions of the manufacturer.
DC-circuit breaker
according to VDE AR-N 4105
for grid connection
Degree of protection: IP65
euro efficiency: 97%
height x width x depth 433x354x147mm
max. DC power: 7500W
nominal power: AC 5000W
max. DC voltage: 580V
without Display
High voltage battery (for compatibility information please refer to the manufacturer's documents or to the IBC battery matrix)
Backup function
3-phase meter included (also usable for single phase systems)
5 years warranty
up to 10 years optional
Please note the country-specific service & warranty conditions of the manufacturer.
