New
Item No.: 7400100059

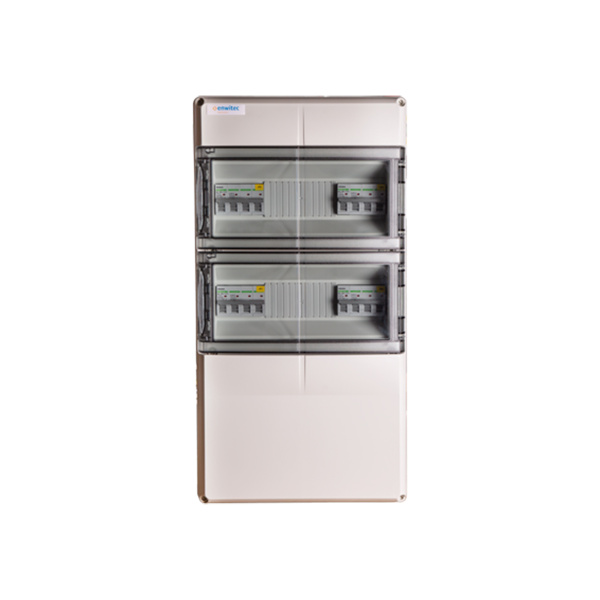

enwitec HV-BAT Breaker
max. 3x BYD Premium HVM/HVB/HVM+
2 pcs available
Merkmale
Depth [mm]
155
Width [mm]
315
Height [mm]
600
Weight [kg]
6,5
WEEE-Registrier-Nr. DE
71566755
Description
connection of up to 3 parallel battery strings/battery towers of the following types:
BYD PREMIUM HVM (nominal current 50A peak current 75A 3s)
BYD PREMIUM HVM (nominal current 50A peak current 75A 3s)
BYD PREMIUM HVM+ (nominal current 50A - peak current 80A - 15s)
BYD PREMIUM HVB (nominal current 50A peak current 98A 15s)
- Each battery string is fused on all poles
- The charger connection is fused on all poles
- Circuit breakers with a rated voltage of 1000VDC and a K tripping characteristic
with thermal tripping and magnetic quick release
- Can be operated by laypersons
- Compatible with the Fronius VERTO-PLUS inverter in all power classes!
BYD PREMIUM HVB (nominal current 50A peak current 98A 15s)
- Each battery string is fused on all poles
- The charger connection is fused on all poles
- Circuit breakers with a rated voltage of 1000VDC and a K tripping characteristic
with thermal tripping and magnetic quick release
- Can be operated by laypersons
- Compatible with the Fronius VERTO-PLUS inverter in all power classes!
