Item No.: 7401100064

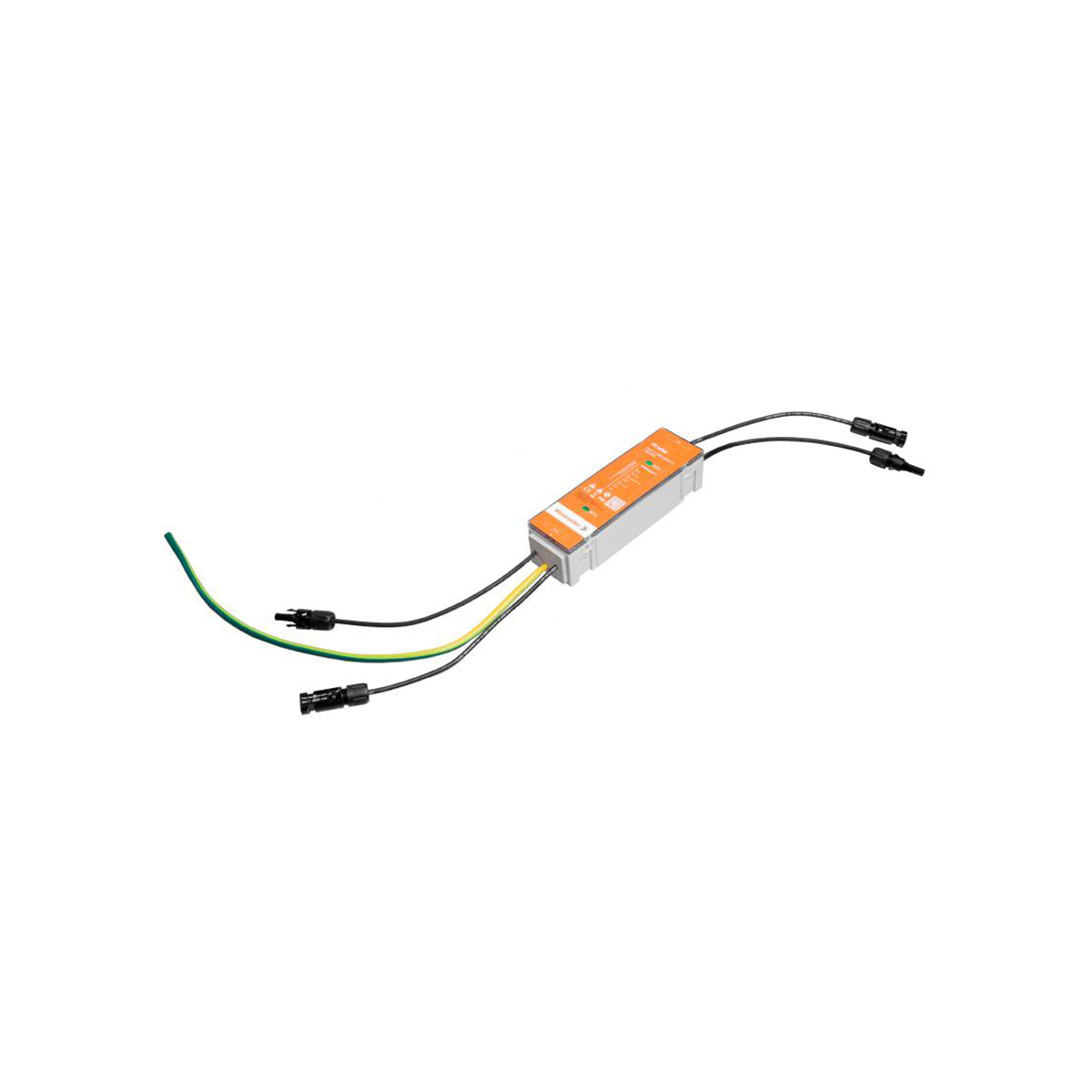

Weidmüller PV-inline DC con-box
1 MPPT, SPD-type I/II, MC4
available
Merkmale
Depth [mm]
52
Width [mm]
60
Height [mm]
280
Weight [kg]
0,7
max. input voltage [V]
1,100
number of MPP-trackers
1
WEEE-Registrier-Nr. DE
73937473
Overvoltage protection
YES
max number of strings
1
DC connector type (terminal / plug)
MC4
max input current per string [A]
39
max input current [A]
39
Description
The space-saving generator junction box is particularly suitable for confined spaces.
It can be integrated into cable ducts or mounted behind PV modules.
Compatible cable ducts:
Hager Tehalit LF4006009016
Hager Tehalit LF4006007035
OBO WDK 40060
It can be integrated into cable ducts or mounted behind PV modules.
Compatible cable ducts:
Hager Tehalit LF4006009016
Hager Tehalit LF4006007035
OBO WDK 40060
