Item No.: 3602000088
Goodwe GW40K-ET-10
Hybrid Inverter 3~, AFCI
2 pcs available
Merkmale
Depth [mm]
260
Width [mm]
520
Height [mm]
660
Weight [kg]
62
Type of DC-connector
MC4
max. input voltage [V]
1,000
AC-nominal power [VA]
40,000
DC-nominal power [W]
40,000
number of grid input phases
3
number of MPP-trackers
3
Inverter technologie
HYBRID INVERTER
protection rating
66
WEEE-Registrier-Nr. DE
33154372
Description

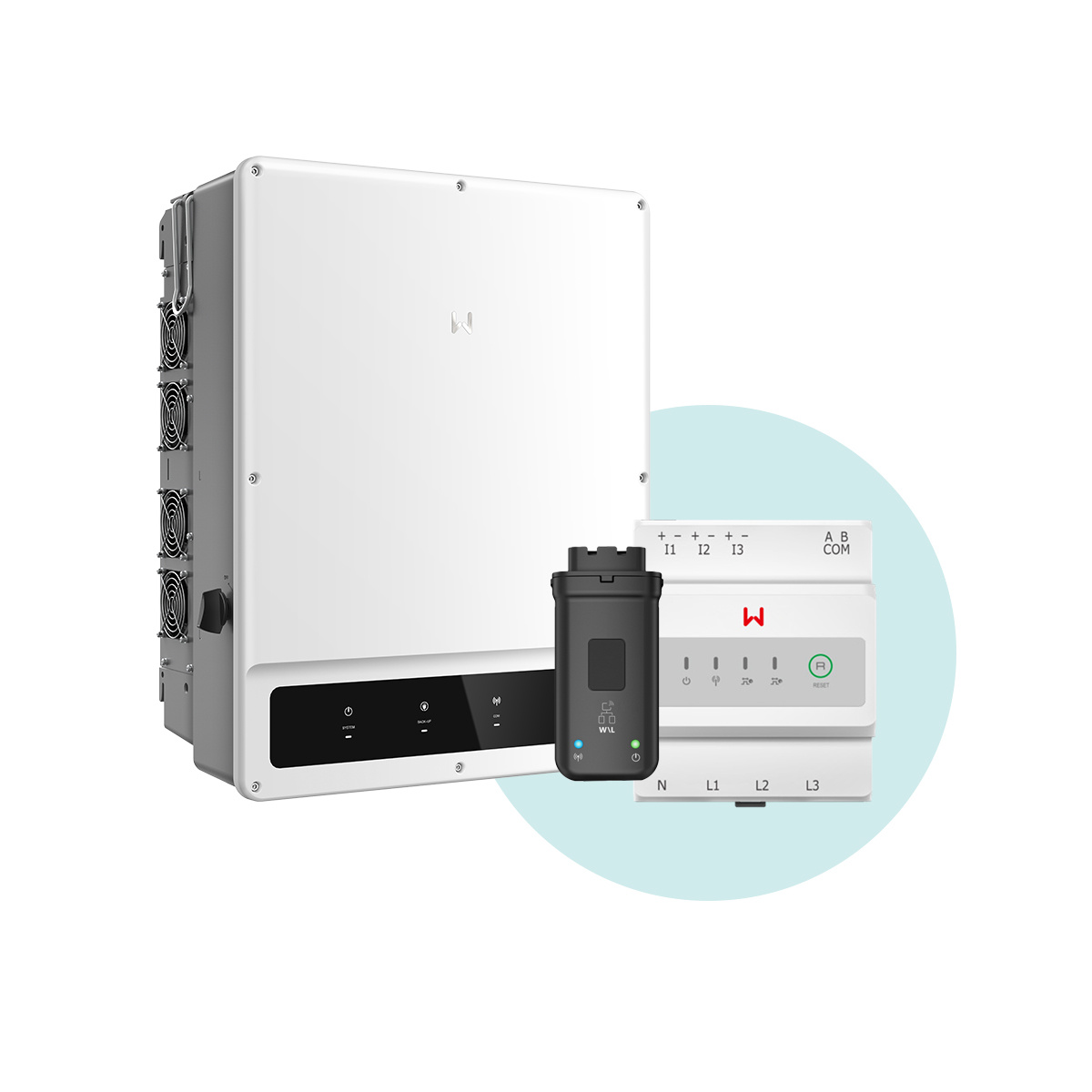

The GW40K-ET hybrid inverter from GoodWe is a powerful, three-phase inverter that has been specially developed for commercial and industrial use.
With an AC output of 40 kW and up to three MPP trackers, it offers high flexibility and efficiency in energy conversion.
- DC overvoltage protection Type II included
- RCR connection included
- Dry contacts for switching of controllable loads
WiFi/LAN Kit-20 Dongle included
DC Switch
for grid parallel conection
Protection class: IP66
Europ. Efficiency: 97,5%
H x W x D 660/520/260 mm
Max. connectable PV Power: 60.000 Wp
AC Nominal Power: 40.000 W
max. DC Input Voltage: 1000 V
without Display
HV Battery (Please refer to the manufacturer's compatibility list)
Backup function possible in combination with the optional STS Box
With an AC output of 40 kW and up to three MPP trackers, it offers high flexibility and efficiency in energy conversion.
- DC overvoltage protection Type II included
- RCR connection included
- Dry contacts for switching of controllable loads
WiFi/LAN Kit-20 Dongle included
DC Switch
for grid parallel conection
Protection class: IP66
Europ. Efficiency: 97,5%
H x W x D 660/520/260 mm
Max. connectable PV Power: 60.000 Wp
AC Nominal Power: 40.000 W
max. DC Input Voltage: 1000 V
without Display
HV Battery (Please refer to the manufacturer's compatibility list)
Backup function possible in combination with the optional STS Box
smart meter GM330 included, CTs must be ordered separately (see accessories)
Warranty 5 Years
optional up to 20 years
The manufacturer's country-specific warranty & service conditions apply.
Warranty 5 Years
optional up to 20 years
The manufacturer's country-specific warranty & service conditions apply.
