Item No.: 3001900021

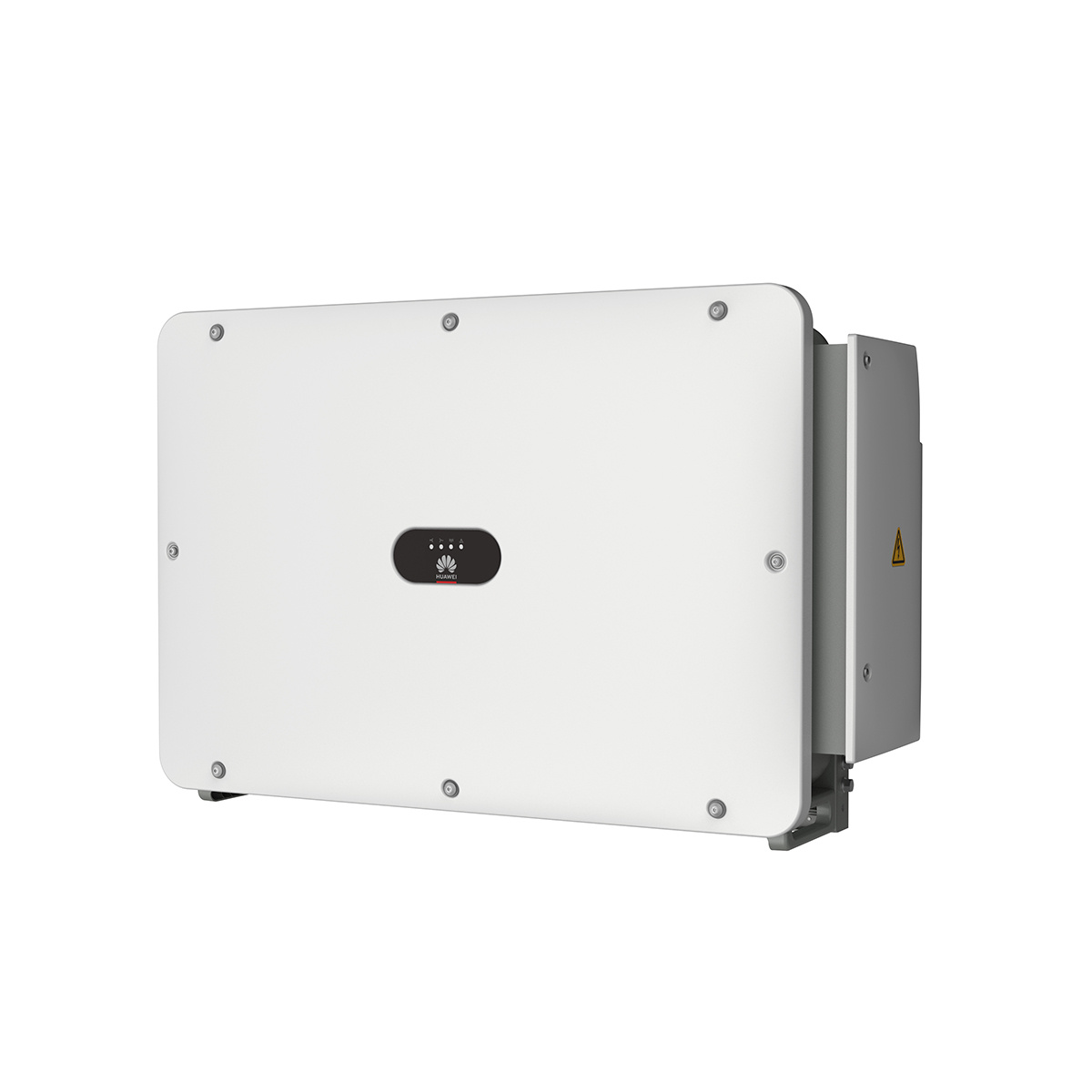

Huawei SUN2000-115KTL-M2
inverter 3~ SPD 1/2
available
Merkmale
Depth [mm]
365
Width [mm]
1,035
Height [mm]
700
Weight [kg]
93
Type of DC-connector
MC4
max. input voltage [V]
1,100
AC-nominal power [VA]
115,000
DC-nominal power [W]
117,350
number of grid input phases
3
number of MPP-trackers
10
Inverter technologie
GRID FEED-IN INVERTER
protection rating
66
WEEE-Registrier-Nr. DE
39372368
Description
The HUAWEI SUN2000-115KTL-M2 is a three-phase string inverter with a maximum output power of 115 kW.
It offers high efficiency of up to 98.8% and features numerous intelligent protection and communication functions.
Key features include:
Maximum efficiency: 98.8% at 480 V, 98.6% at 400 V
European efficiency: 98.6% at 480 V, 98.4% at 400 V
Maximum input voltage: 1,100 V
Number of MPPTs: 10
Nominal AC power: 115,000 W
Maximum apparent AC power: 125,000 VA
Nominal output voltage: 400 V / 480 V
Protection class: IP66
Cooling method: Intelligent air cooling
Operating temperature range: -25°C to 60°C
Maximum operating altitude: 4,000 m without derating
The inverter supports a variety of protection functions, including DC and AC overvoltage protection,
Maximum efficiency: 98.8% at 480 V, 98.6% at 400 V
European efficiency: 98.6% at 480 V, 98.4% at 400 V
Maximum input voltage: 1,100 V
Number of MPPTs: 10
Nominal AC power: 115,000 W
Maximum apparent AC power: 125,000 VA
Nominal output voltage: 400 V / 480 V
Protection class: IP66
Cooling method: Intelligent air cooling
Operating temperature range: -25°C to 60°C
Maximum operating altitude: 4,000 m without derating
The inverter supports a variety of protection functions, including DC and AC overvoltage protection,
DC insulation resistance detection, residual current monitoring, and arc fault detection.
