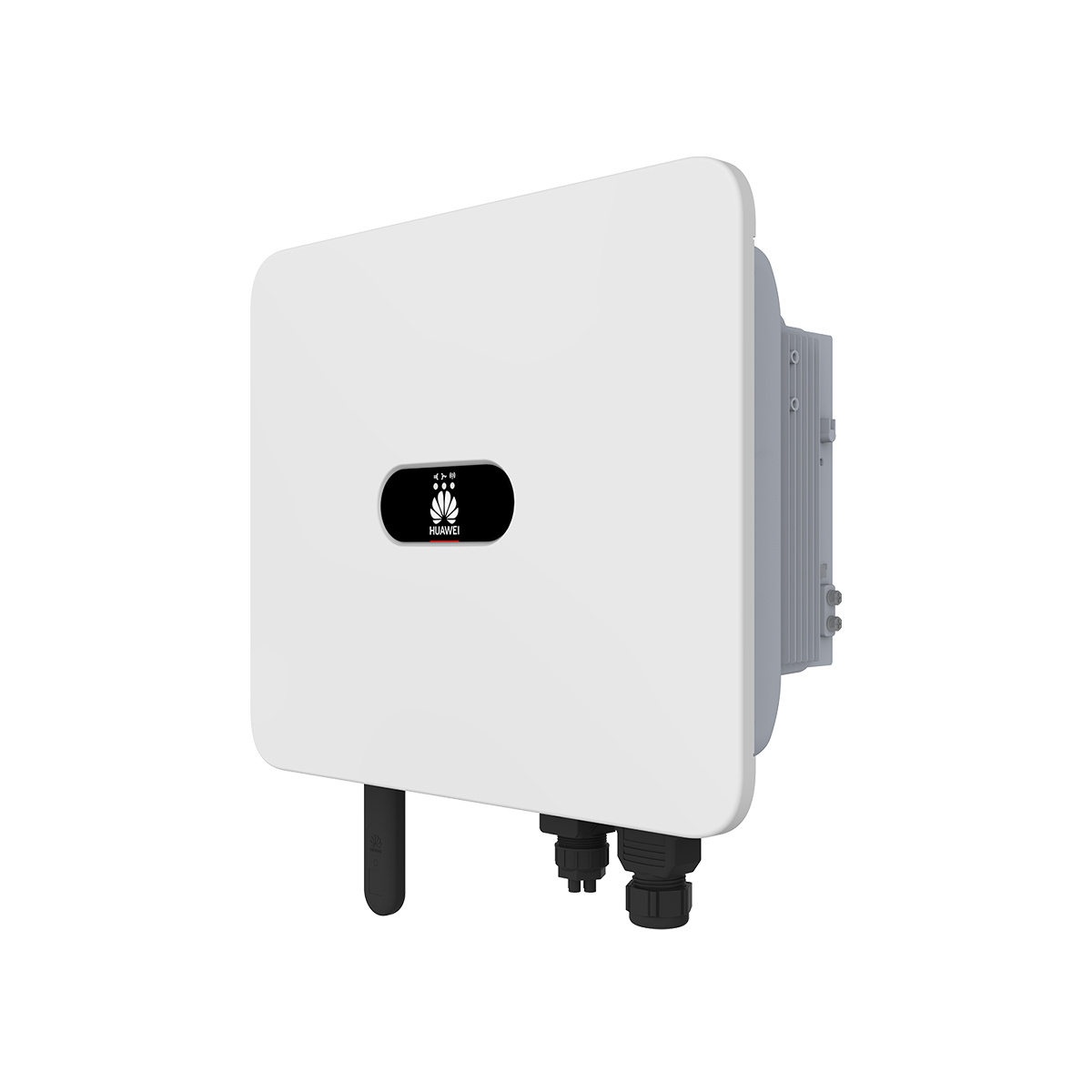

Huawei SUN2000-12K-MB0

The Huawei SUN2000-12K-MB0 is a three-phase hybrid string inverter for PV systems with storage and energy management requirements. It operates transformerless with two MPP trackers and four DC string inputs, enabling flexible mapping of different string lengths and roof orientations. With a rated AC output of 12,000W and a maximum apparent power of 13,200VA, it is suitable for demanding residential and small commercial applications. The maximum DC input voltage of 1,100V allows long strings and reduces line losses. The high efficiency of up to 98.4% improves annual energy yields. Integrated safety features such as AI-based arc fault detection (AFCI) and the IP66 protection rating support reliable outdoor operation. Optional communication dongles allow integration of the inverter into monitoring and energy management systems.

• TechnologyThe inverter uses a modern hybrid topology in a three-phase design and is intended for combined operation of PV generator, grid, and battery system. Two independent MPP trackers, each with two string inputs, enable precise maximum power point tracking even with shaded or differently oriented generator areas. The MPPT operating range of 200V to 1,000V covers both short and long string concepts, while the full-load range from 370V ensures stable performance at high DC voltages. The integrated AFCI function detects arc faults at string level at an early stage, thereby increasing the electrical safety of the system during operation.

  Performance and protection concept
  • Transformerless topology for high efficiency and low weight compared to galvanically isolated systems
  • AI-supported arc fault detection to minimize risks in the event of DC faults
  • IP66 enclosure for permanent use in protected and unprotected outdoor areas
  • High DC voltage resistance up to 1,100V for low-loss string design
• ConnectivityThe basic communication of the SUN2000-12K-MB0 is provided via an integrated RS485 interface, which is used in particular for connecting meters, batteries, or energy management devices. For monitoring, remote maintenance, and commissioning, the inverter can be expanded with optional smart dongles for Ethernet, Wi-Fi, or 4G mobile communication. This allows the device to be flexibly integrated into various IT and network infrastructures. Commissioning and parameterization are carried out conveniently via the FusionSolar app, reducing time on site and simplifying initial system checks.

  Interfaces and monitoring
  • Integrated RS485 for meter, battery, and energy management connection
  • Ethernet and Wi-Fi via smart dongle for local or cloud-based monitoring
  • Optional 4G connectivity where network infrastructure is unavailable
  • App-supported commissioning to accelerate project execution
• WarrantyThe Huawei SUN2000-12K-MB0 comes with a standard manufacturer’s warranty of 10 years. This covers material and manufacturing defects under normal operating conditions and is a relevant factor for installers and operators when considering the lifecycle and economic efficiency of PV systems. Warranty extensions are available depending on the model via Huawei’s designated service channels, which can provide additional planning security for long-term projects.

  Standard warranty
  • 10 years product warranty on the inverter
  • Coverage of material and manufacturing defects during regular operation
  • Option to extend the warranty depending on project requirements
  • Relevance for long-term O&M calculations
• SustainabilityHuawei pursues a sustainability-oriented design approach with the MB0 series, particularly in terms of material use and logistics. Reduced device and packaging weights lower resource consumption and simplify transport and installation. The use of fiber-based packaging materials supports improved recyclability compared to plastic-based solutions. In addition, there is a global recycling program that promotes the recovery of valuable materials from electronic components and contributes to a circular economy.

  Resource and material strategy
  • Reduction of weight and volume to minimize transport effort
  • Packaging with fiber-based materials for improved disposal
  • Global recycling programs for electronic components
  • Contribution to reducing the ecological footprint of PV systems
• QualityThe SUN2000-12K-MB0 is designed for professional continuous operation and combines robust mechanical construction with high electrical performance. The IP66-rated enclosure provides effective protection against dust and strong water jets. With a device weight of around 21kg, one-person installation is possible, reducing installation time. High efficiency and precise control of AC output parameters support stable grid-parallel operation in accordance with common grid connection guidelines.

  Mechanical and electrical design
  • Robust IP66 enclosure for demanding environmental conditions
  • Compact design and moderate weight for installation-friendly mounting
  • Stable three-phase grid feed-in with adjustable power factor
  • High manufacturing quality for long service life
• ExpandabilityThe inverter is designed for modular system expansion and is compatible with Huawei Smart String battery systems of the LUNA2000 series. Two separate battery terminals enable flexible connection of storage capacities for self-consumption optimization or backup power concepts in combination with SmartGuard solutions. In addition, the SUN2000-12K-MB0 supports the use of smart module controllers and power optimizers, allowing efficient management of complex generator layouts or partial shading.

  System integration
  • Compatibility with Huawei LUNA2000 storage solutions
  • Connection to SmartGuard for backup and emergency power concepts
  • Support for module optimizers for complex string structures
  • Scalability for growing PV and energy management requirements
