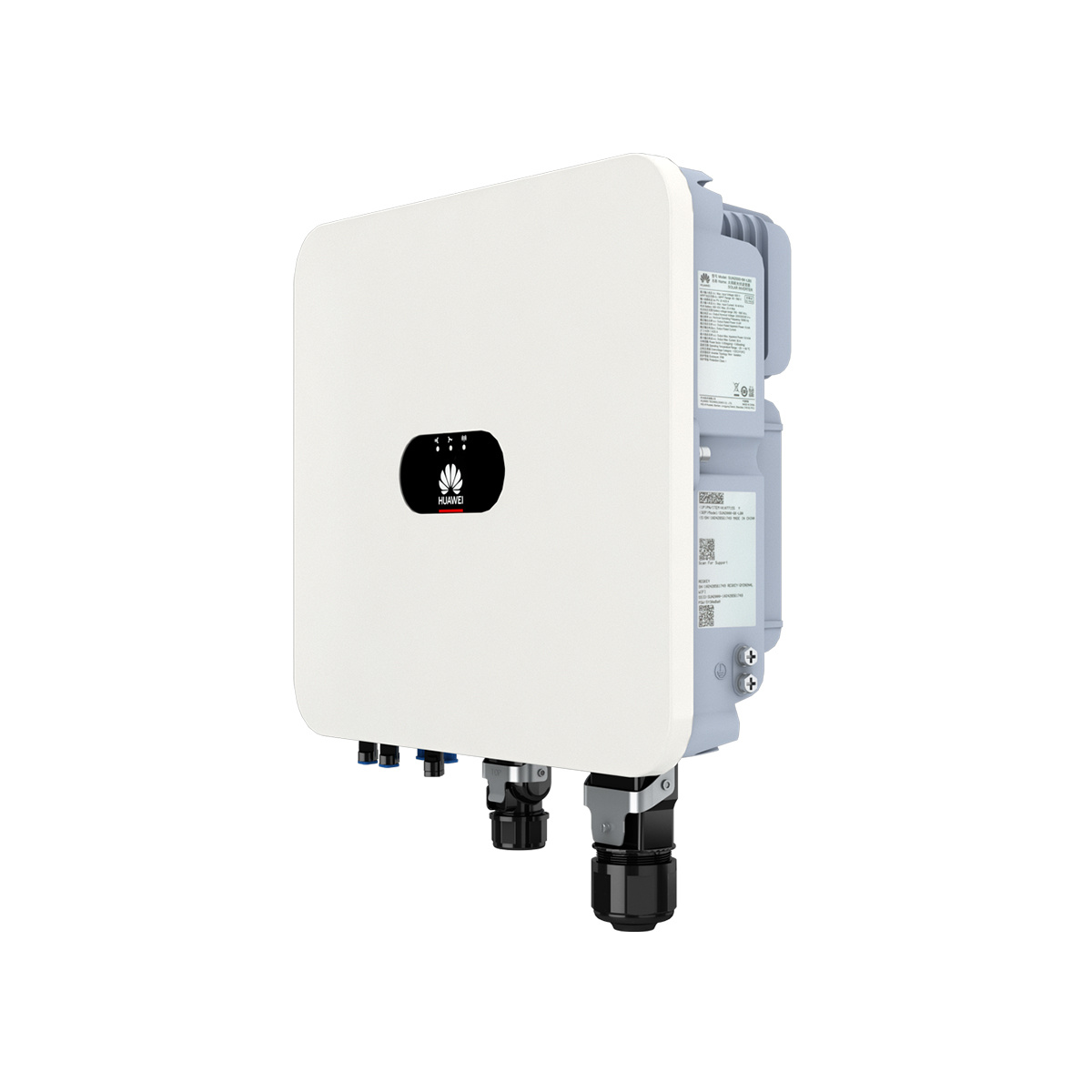

Huawei SUN2000-4.6K-LB0

The Huawei SUN2000‑4.6K‑LB0 is a single-phase hybrid string inverter for grid-connected PV systems with optional storage integration. With 4.6kVA AC rated power and two independent MPP trackers, it is designed for typical residential layouts with two string arrays. The high maximum efficiency of 97.8% and a European weighted efficiency of 97.0% enable low conversion losses in partial-load operation. The wide MPP voltage range of 40 to 560V supports flexible string designs, including modern high-current modules. Thanks to IP66 protection, natural convection without active fans, and integrated DC/AC surge protection functions, the inverter is designed for long-lasting outdoor use. The DC battery interface allows direct connection of compatible Huawei LUNA2000 storage systems for self-consumption and backup concepts.

• TechnologyThe inverter operates with a single-phase hybrid topology and integrates two independent MPP trackers, each with its own current control. Up to 16A input current is permitted per tracker, allowing high-performance module strings to be operated without parallel connection. The recommended maximum PV generator power of 6.9kWp allows moderate DC oversizing to optimize annual yield. Natural cooling reduces mechanical wear and supports low-maintenance continuous operation across the specified temperature range of −25°C to +60°C. The integrated AFCI arc fault detection increases system safety, especially for long DC cable runs.

  Electrical design
  • Two MPP trackers enable different string orientations or module tilts within one device.
  • Maximum DC voltage of 600V allows common string lengths in the residential segment.
  • European efficiency of 97.0% reduces losses in practically relevant partial-load operation.
  • Natural convection avoids fan failures and minimizes maintenance effort.
• ConnectivityFor system communication, the SUN2000‑4.6K‑LB0 provides an integrated RS485 interface, primarily used for smart meter connection and energy management. WLAN is integrated as standard and is used for local commissioning as well as access to Huawei FusionSolar monitoring. For more stable network environments, data connectivity can be expanded to Ethernet via an optional Smart Dongle; alternatively, mobile communication via a 4G dongle is also possible. The wide range of interfaces facilitates integration into different monitoring and operation management concepts.

  Monitoring and interfaces
  • RS485 enables connection of external meters and energy management components.
  • Integrated WLAN simplifies on-site parameterization and service access.
  • Ethernet and 4G connectivity via optional dongles for professional system monitoring.
  • FusionSolar platform supports remote maintenance, fault diagnostics, and yield analysis.
• WarrantyThe Huawei SUN2000‑4.6K‑LB0 comes with a standard manufacturer’s warranty of 10 years. This covers material and manufacturing defects of the inverter and is designed for use in residential and small commercial applications. Optional paid warranty extensions are available and can be particularly relevant for long-term operator or leasing models. The fanless design and high IP66 protection rating have a positive effect on the expected service life within the warranty period.

  Warranty scope
  • 10 years standard warranty for the inverter.
  • Optional extensions reduce long-term operational cost risks.
  • Fanless design supports high availability over the warranty period.
  • High protection rating reduces environment-related warranty claims.
• SustainabilityIn terms of sustainability, Huawei relies on a compact design and low device weight of around 15kg for the LB0 series, reducing transport and installation effort. High efficiency reduces system energy losses and improves the overall CO₂ footprint of the system. In addition, packaging materials are increasingly designed with reduced plastic content and recycling processes for electronic waste are supported. These aspects are particularly relevant for projects with sustainability or ESG requirements.

  Resource efficiency
  • Low weight simplifies logistics and single-person installation.
  • High efficiency reduces operational losses over the lifecycle.
  • Compact design lowers material usage per installed kVA.
  • Recycling programs support circular economy in the electronics sector.
• QualityThe quality of the SUN2000‑4.6K‑LB0 is evident in its robust mechanical design with an IP66 enclosure that protects against dust, heavy rain, and temporary water jets. Integrated protection functions such as DC reverse polarity, surge protection, residual current monitoring, and anti-islanding protection meet common grid connection standards. The design for altitudes up to 4,000m and the wide temperature range make the device suitable even under demanding environmental conditions.

  Operational safety
  • IP66 allows outdoor installation without additional protection.
  • Comprehensive electrical protection mechanisms increase grid and system safety.
  • Natural cooling avoids wear-prone components.
  • Approved for wide temperature and altitude ranges.
• ExpandabilityThe inverter is designed for modular system expansion. Huawei LUNA2000 storage systems of the S0 and S1 generations can be connected on the DC side via the integrated battery interface. For emergency power or backup applications, the SUN2000‑4.6K‑LB0 can be combined with an external SmartGuard backup box. In addition, compatibility with Huawei Smart PV optimizers is provided, enabling module-level monitoring or shading management.

  System integration
  • DC-coupled storage connection to LUNA2000 systems.
  • Backup operation via optional SmartGuard components.
  • Compatible with Huawei module optimizers for extended string functions.
  • Scalable within a single-phase hybrid energy system.
