New
Item No.: 3001200161

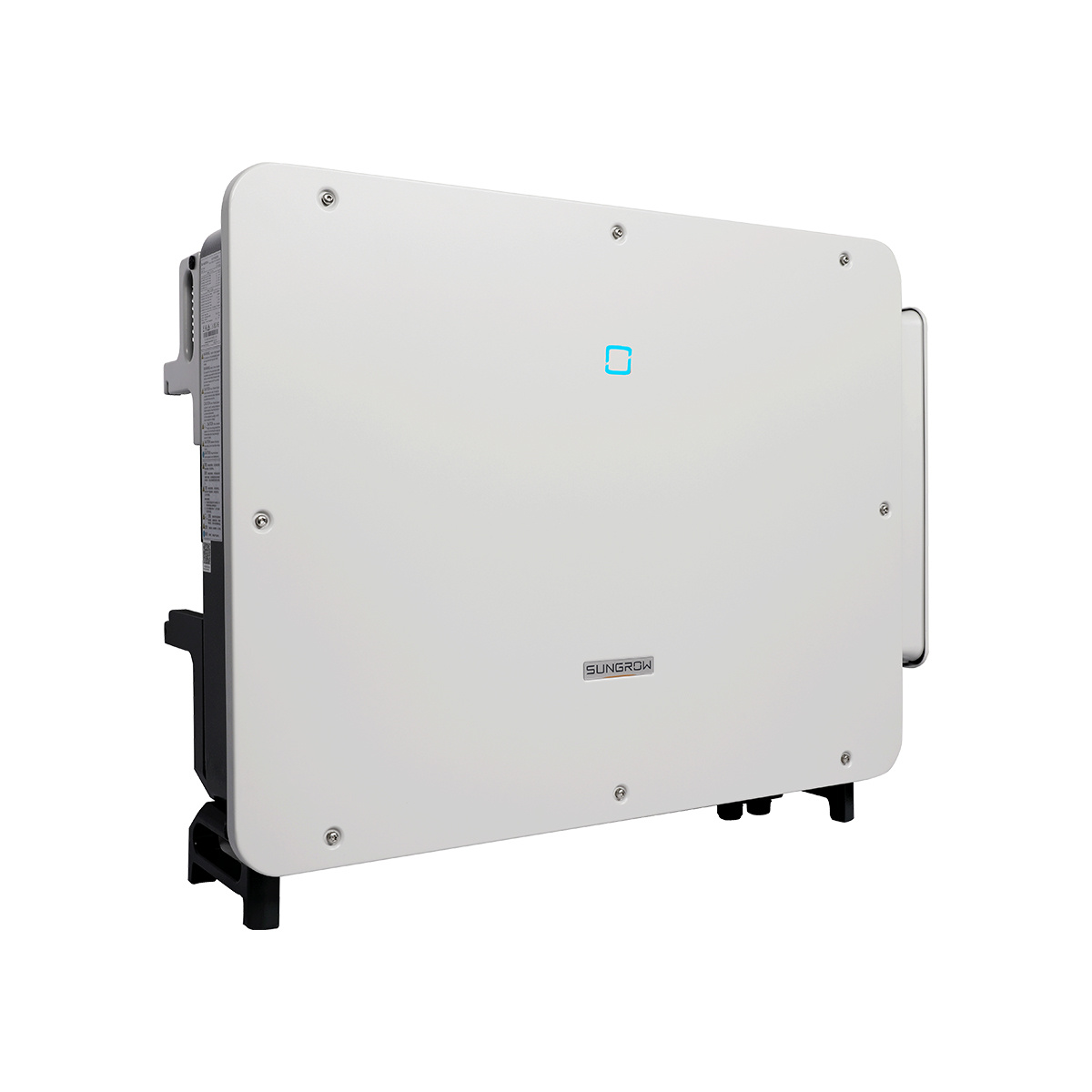

Sungrow SG150CX
Inverter 3~
available
Merkmale
Depth [mm]
360
Width [mm]
1,025
Height [mm]
795
Weight [kg]
100
Type of DC-connector
MC4
max. input voltage [V]
1,100
AC-nominal power [VA]
150,000
max. efficiency [%]
98,8
number of grid input phases
3
number of MPP-trackers
7
Inverter technologie
GRID FEED-IN INVERTER
protection rating
66
WEEE-Registrier-Nr. DE
28316743
Description
AC output power: 150000VA
Max. PV input Voltage: 1100V
euro efficiency:98,5%
Max. PV input Voltage: 1100V
euro efficiency:98,5%
Protection rating: IP66
W x D x H 1025 / 795 / 360 mm
Manufacturer Warranty 5 years,
can be extended to 15 years.
It applies the warranty conditions
of the manufacturer, which are valid
at delivery.
VDE-AR-N 4105:2018-11 and VDE-AR-N 4110:2018-11 (currently as prototype certificate) available
W x D x H 1025 / 795 / 360 mm
Manufacturer Warranty 5 years,
can be extended to 15 years.
It applies the warranty conditions
of the manufacturer, which are valid
at delivery.
VDE-AR-N 4105:2018-11 and VDE-AR-N 4110:2018-11 (currently as prototype certificate) available
For further grid compliances, please see Sungrow release documentation.
