Item No.: 2006300034
DMEGC DM265M10T-B32HBT
glass/glass, transparent, 1.1m
available by week: 34/2026
Merkmale
Length [mm]
1,542
Width [mm]
766
Height [mm]
30
Weight [kg]
15,3
Type of DC-connector
EVO2A
max. System Voltage [V]
1,500
Module Efficiency [%]
22
Number of cells
32
Cell technology
TOPCON
Length of connecting cable [m]
1,1
Current value String fuse [A]
30
Color backsheet
TRANSPARENT
Frame Colour
BLACK
Product warranty (years)
25
WEEE-Registrier-Nr. DE
50188598
Module design
HALF CELL
Nominal Power [Wp]
265
Max. design load pressure [N/m²]
5,400
Max. design load tension [N/m²]
2,667
Power/area [Wp/m²]
224
Description

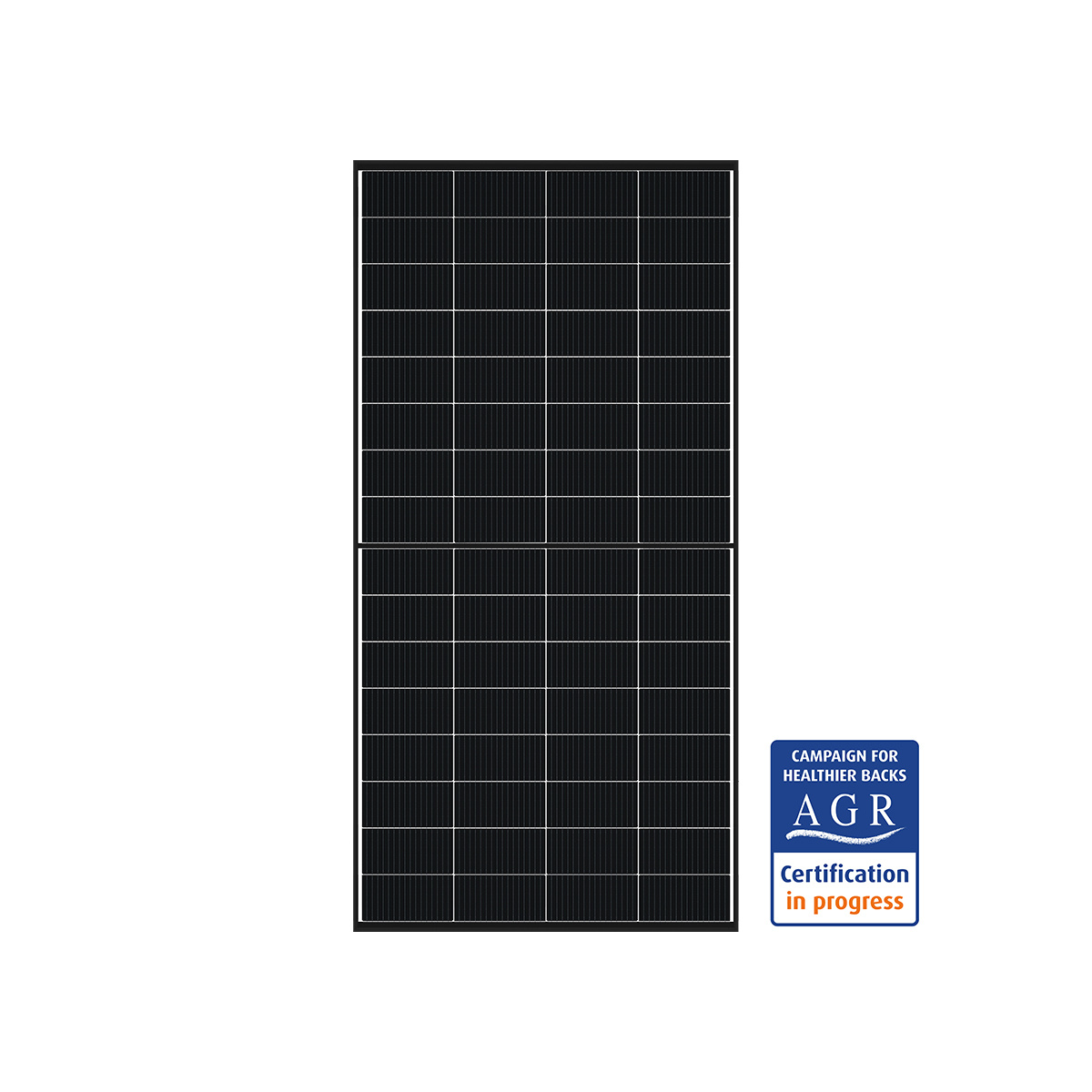

The DMEGC M10T-B32HBT is a compact, bifacial glass-glass solar module featuring modern N-type TOPCon technology. It achieves a nominal output of 255–270 Wp and a module efficiency of up to 22.9 %. Weighing only about 15.3 kg and measuring 1542 × 766 × 30 mm, it is ideal for roofs with limited space or architecturally demanding applications.
Module TechnologyN-type TOPCon technology (Tunnel Oxide Passivated Contact) utilizes an ultra-thin tunnel oxide layer and passivated contacts to minimize electron recombination. This achieves efficiencies of over 24 % as well as high temperature stability. The technology is based on n-doped silicon, which is less susceptible to light-induced degradation. Combined with the bifacial design, it enables additional energy gains, making the modules particularly efficient and durable.
QualityDMEGC modules stand for high-quality workmanship, reliability, and efficiency. They achieve efficiencies of up to 21.5 % and deliver solid performance even in low light or partial shading. As a Bloomberg Tier 1 listed manufacturer, DMEGC has been multiple times awarded as a "Top Performer" in independent tests. The modules received top marks for mechanical load capacity, temperature coefficient, and PID resistance, further confirming their durability and quality.
SustainabilityDMEGC modules represent the highest sustainability standards. Production is 100 % powered by renewable energy, and all plants are certified by TÜV SÜD as CO₂-neutral. All products are PFAS-free, RoHS and REACH compliant, and feature a low carbon footprint, as evidenced by EPD, PEP, and ISO14067 certificates. For outstanding ESG performance, DMEGC was also awarded the EcoVadis Silver Medal.
WarrantyThe DMEGC B32HBT offers a 25-year product warranty against material and manufacturing defects, as well as a 30-year linear performance warranty. This provides for a maximum degradation of ≤ 1 % in the first year and ≤ 0.4 % per year thereafter. After 30 years, a minimum performance of approximately 87.4 % of the nominal output is guaranteed, underscoring the long-term reliability of the module.
