Remaining stock
Item No.: 2001800033

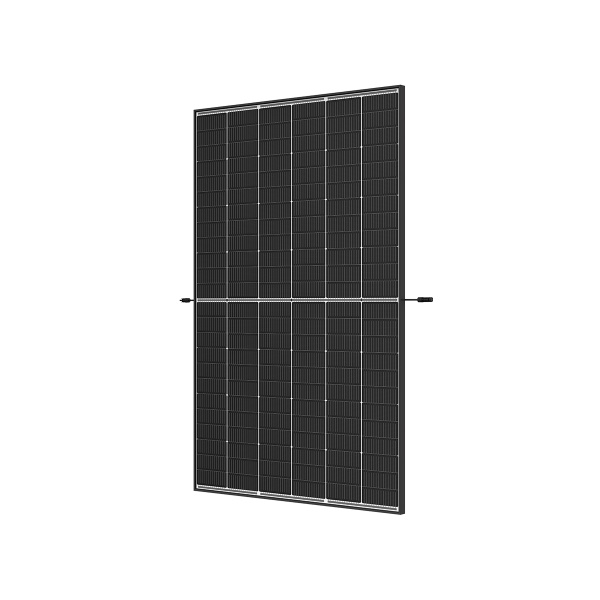

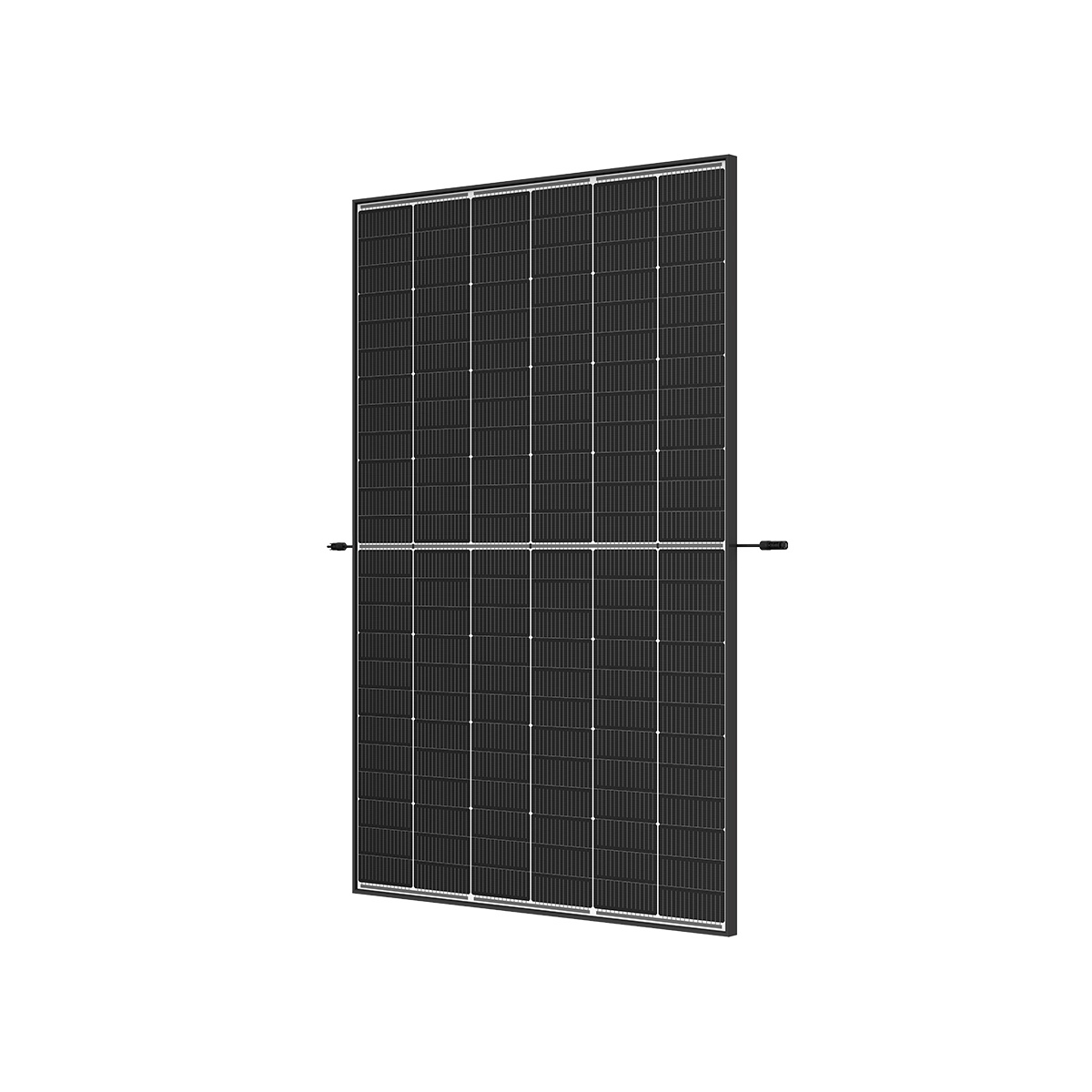

Trina TSM-455NEG9R.28
glass/glass, TS4, 1,1m, Vertex S+
7 pcs available
Merkmale
Length [mm]
1,762
Width [mm]
1,134
Height [mm]
30
Weight [kg]
21
Type of DC-connector
TS4
max. System Voltage [V]
1,500
Module Efficiency [%]
22,8
Number of cells
144
Cell technology
TOPCON
Length of connecting cable [m]
1,1
Current value String fuse [A]
35
Color backsheet
WHITE
Frame Colour
BLACK
Product warranty (years)
25
WEEE-Registrier-Nr. DE
85507170
Module design
THIRD CELL
Nominal Power [Wp]
455
Max. design load pressure [N/m²]
3,600
Max. design load tension [N/m²]
2,600
Power/area [Wp/m²]
228
Description
Rated power 455 Wp
monocrystalline cell
LxWxH: 1762x1134x30 mm
Power tolerance 0/+5 W
Max. surface load: 3,6 kPa
Connector type: TS4
Module efficiency: 22,8 %
IEC 61215 certified
IEC 61730 certified
Glass: Anti Reflective Coating (ARC)
Please refer to the latest warranty document of the manufacturer
monocrystalline cell
LxWxH: 1762x1134x30 mm
Power tolerance 0/+5 W
Max. surface load: 3,6 kPa
Connector type: TS4
Module efficiency: 22,8 %
IEC 61215 certified
IEC 61730 certified
Glass: Anti Reflective Coating (ARC)
Please refer to the latest warranty document of the manufacturer
