N° d'article: 7900400095

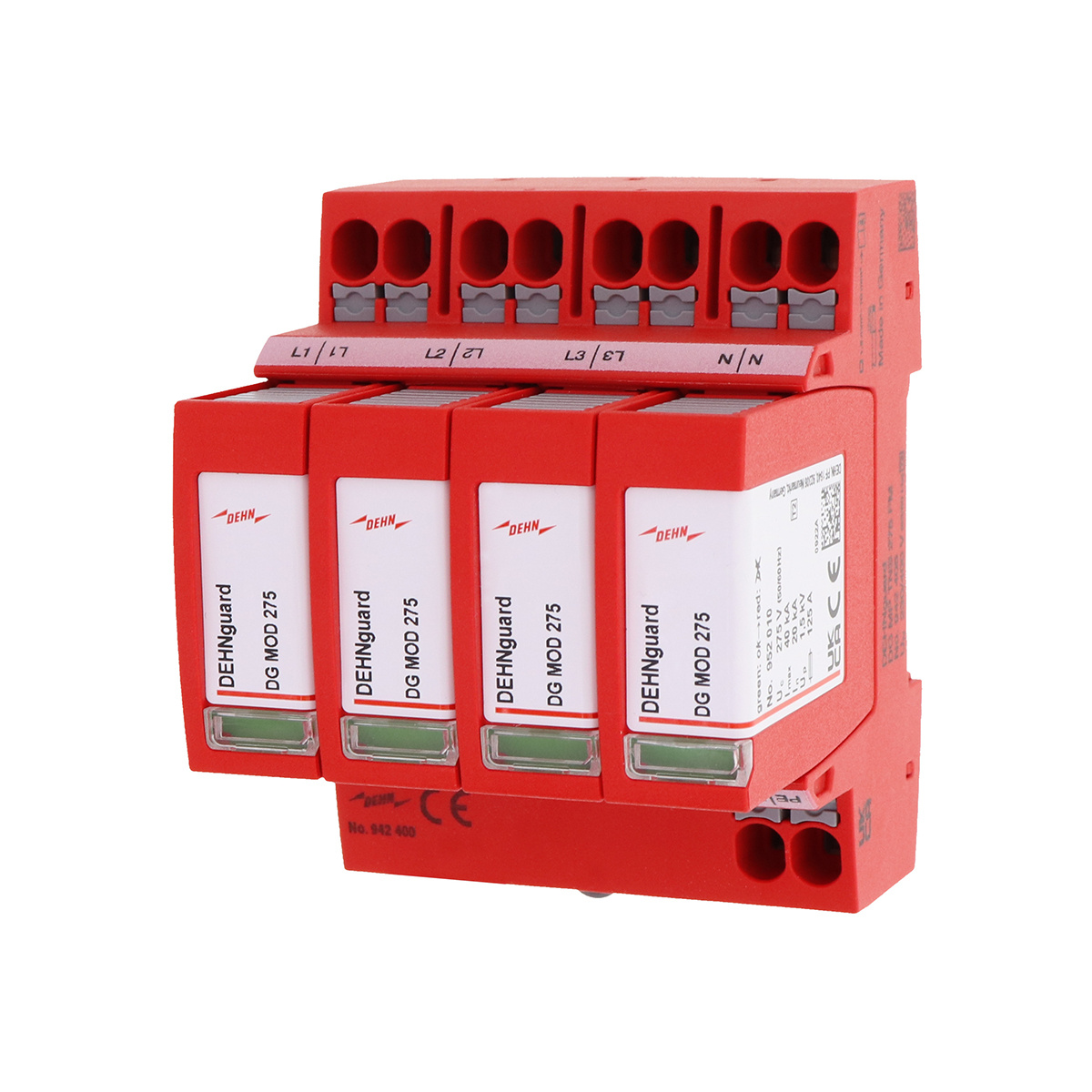

DEHNguard MP TNS 275
surge arrester for TN-S systems
5 pièces disponible
Merkmale
Profondeur [mm]
66
Largeur [mm]
72
Hauteur [mm]
90
Poids [kg]
0,408
WEEE-Registrier-Nr. DE
11890845
Type de parafoudre
Type II/III
Côté de raccordement
Côté CA
Description
Surge arrester DEHNguard MP TNS 275
4-pole, modular, pluggable
Surge arrester with
double push-in connection terminal suitable for
stub and through-wiring
for TN-S systems, width 4TE
Arrester type 2 + type 3 according to EN 61643-11
Defect indicator
Highest continuous voltage: 275 V ac
Protection level: <= 1.5 kV
Rated leakage surge current: 20 kA
Short-circuit resistance: 50 kAeff
Energy coordination in accordance with DIN EN 62305-4
Arrester of the Red/Line family
4-pole, modular, pluggable
Surge arrester with
double push-in connection terminal suitable for
stub and through-wiring
for TN-S systems, width 4TE
Arrester type 2 + type 3 according to EN 61643-11
Defect indicator
Highest continuous voltage: 275 V ac
Protection level: <= 1.5 kV
Rated leakage surge current: 20 kA
Short-circuit resistance: 50 kAeff
Energy coordination in accordance with DIN EN 62305-4
Arrester of the Red/Line family
