Déstockage
N° d'article: 7900400092

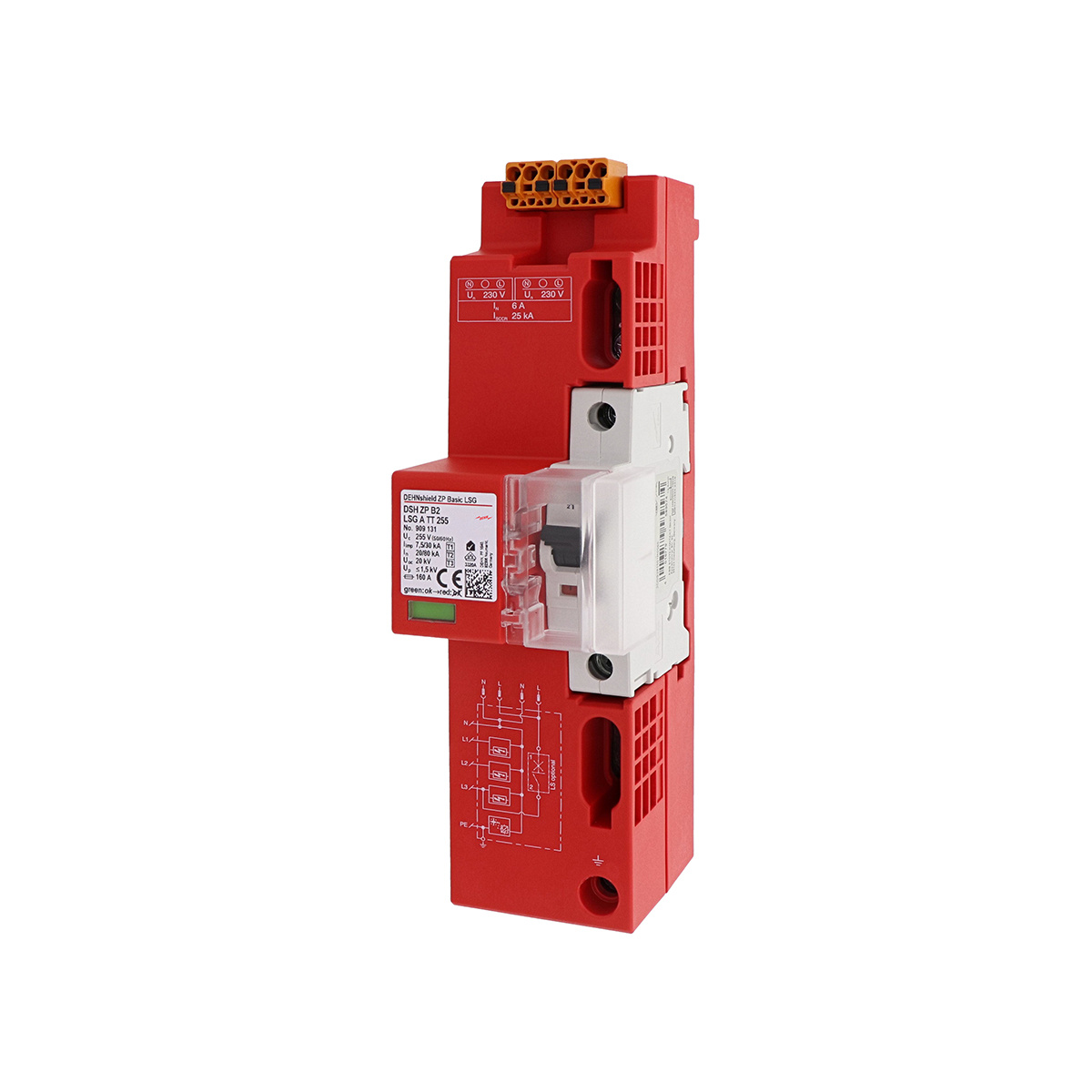

DEHNshield ZP B2 LSG A TT 255
combined arrester for TT-/TN-S systems
5 pièces disponible
Merkmale
Profondeur [mm]
88
Largeur [mm]
54
Hauteur [mm]
214
Poids [kg]
0,769
WEEE-Registrier-Nr. DE
11890845
Côté de raccordement
Côté CA
Type de parafoudre
Type I/II
Description
DEHNshield DSH ZP B2 LSG A TT 255
4-pole combined arrester for 230/400 V
TT and TN(C)-S systems
For use in the pre-metering area in accordance with VDE-AR-N 4100
Arrester type 1 + type 2 + type 3 in accordance with EN 61643-11
Incl. 2 x 230 V power supply (N and L)
for the intelligent measuring system in accordance with VDE-AR-N 4100
Incl. a single-pole B6 circuit breaker for
the power supply
with sealable protective cover and 2 sockets
and 2 plugs for easy wiring.
Powerful and device-friendly
RAC spark gap technology
Can be mounted directly on 40 mm busbar system
without tools
Highest continuous voltage: 255 Vac
Protection level: <= 1.5 kV
Total lightning impulse current (10/350): 30 kA
Residual current extinguishing capacity: 25 kAeff
Energy coordination in accordance with DIN EN 62305-4 to
arresters from the Red/Line family and directly to the
terminal device
4-pole combined arrester for 230/400 V
TT and TN(C)-S systems
For use in the pre-metering area in accordance with VDE-AR-N 4100
Arrester type 1 + type 2 + type 3 in accordance with EN 61643-11
Incl. 2 x 230 V power supply (N and L)
for the intelligent measuring system in accordance with VDE-AR-N 4100
Incl. a single-pole B6 circuit breaker for
the power supply
with sealable protective cover and 2 sockets
and 2 plugs for easy wiring.
Powerful and device-friendly
RAC spark gap technology
Can be mounted directly on 40 mm busbar system
without tools
Highest continuous voltage: 255 Vac
Protection level: <= 1.5 kV
Total lightning impulse current (10/350): 30 kA
Residual current extinguishing capacity: 25 kAeff
Energy coordination in accordance with DIN EN 62305-4 to
arresters from the Red/Line family and directly to the
terminal device
