N° d'article: 3602000064

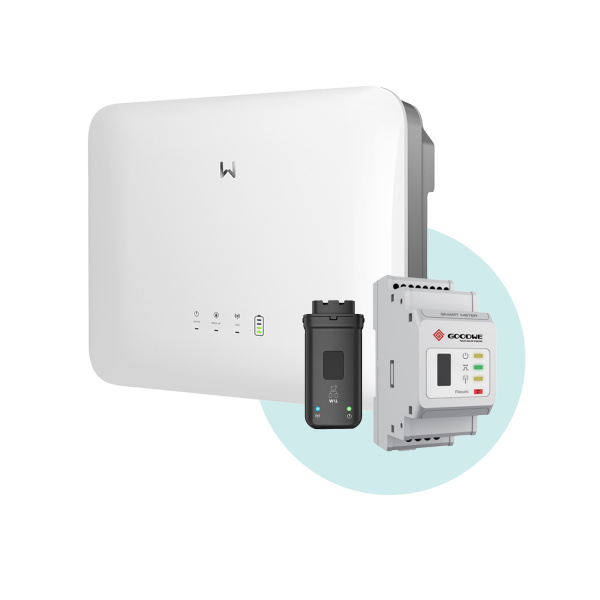

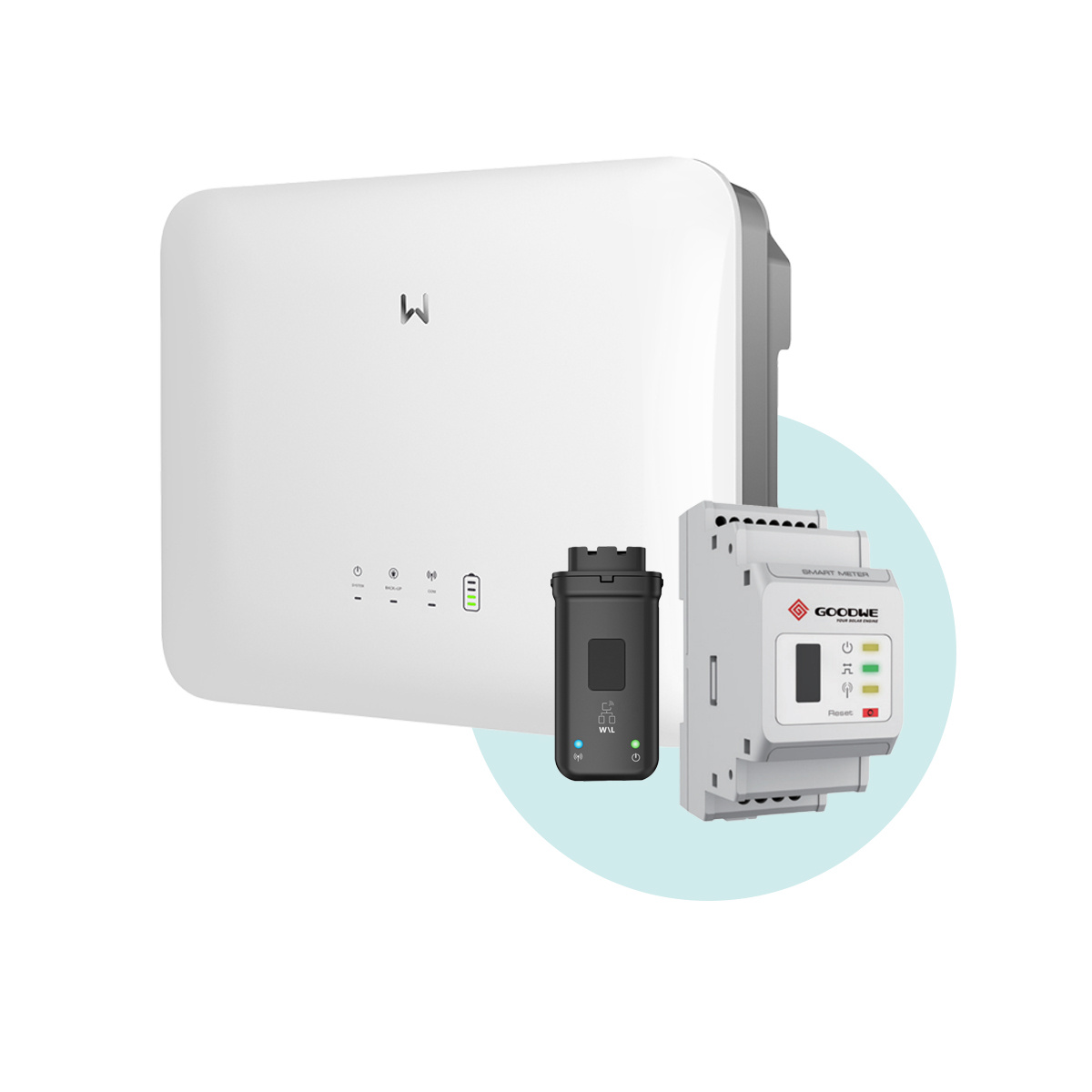

Goodwe GW5000-ES20
Onduleur hybride monophasé
disponible par semaine: 13/2026
Merkmale
Profondeur [mm]
155
Largeur [mm]
506
Hauteur [mm]
435
Poids [kg]
21,5
Type de connexion CC
MC4
Tension d'entrée max. CC [V]
600
Puissance nominale CA [VA]
5,000
Puissance nominale CC [W]
5,000
Rendement max. () [%]
97,6
nombre de phases d'entrée du réseau
1
Trackers MPP
2
Type d'onduleur
onduleur hybride
Classe de protection IP
65
WEEE-Registrier-Nr. DE
33154372
Description
WLAN/Ethernet LAN (option with additional LAN-modul)
DC-circuit breaker
for grid connection
Degree of protection: IP65
euro efficiency: 96,7%
height x width x depth 435/506/155 mm
max. DC power: 7500W
nominal power: 5000W AC
max. DC voltage: 600V
without Display
48V battery (for compativbility information please refer to the manufacturer's documents or to the IBC battery matrix)
Backup function (max 5000W)
5 years warranty
up to 10 years optional
Please note the country-specific service & warranty conditions of the manufacturer.
DC-circuit breaker
for grid connection
Degree of protection: IP65
euro efficiency: 96,7%
height x width x depth 435/506/155 mm
max. DC power: 7500W
nominal power: 5000W AC
max. DC voltage: 600V
without Display
48V battery (for compativbility information please refer to the manufacturer's documents or to the IBC battery matrix)
Backup function (max 5000W)
5 years warranty
up to 10 years optional
Please note the country-specific service & warranty conditions of the manufacturer.
