N° d'article: 3602000080

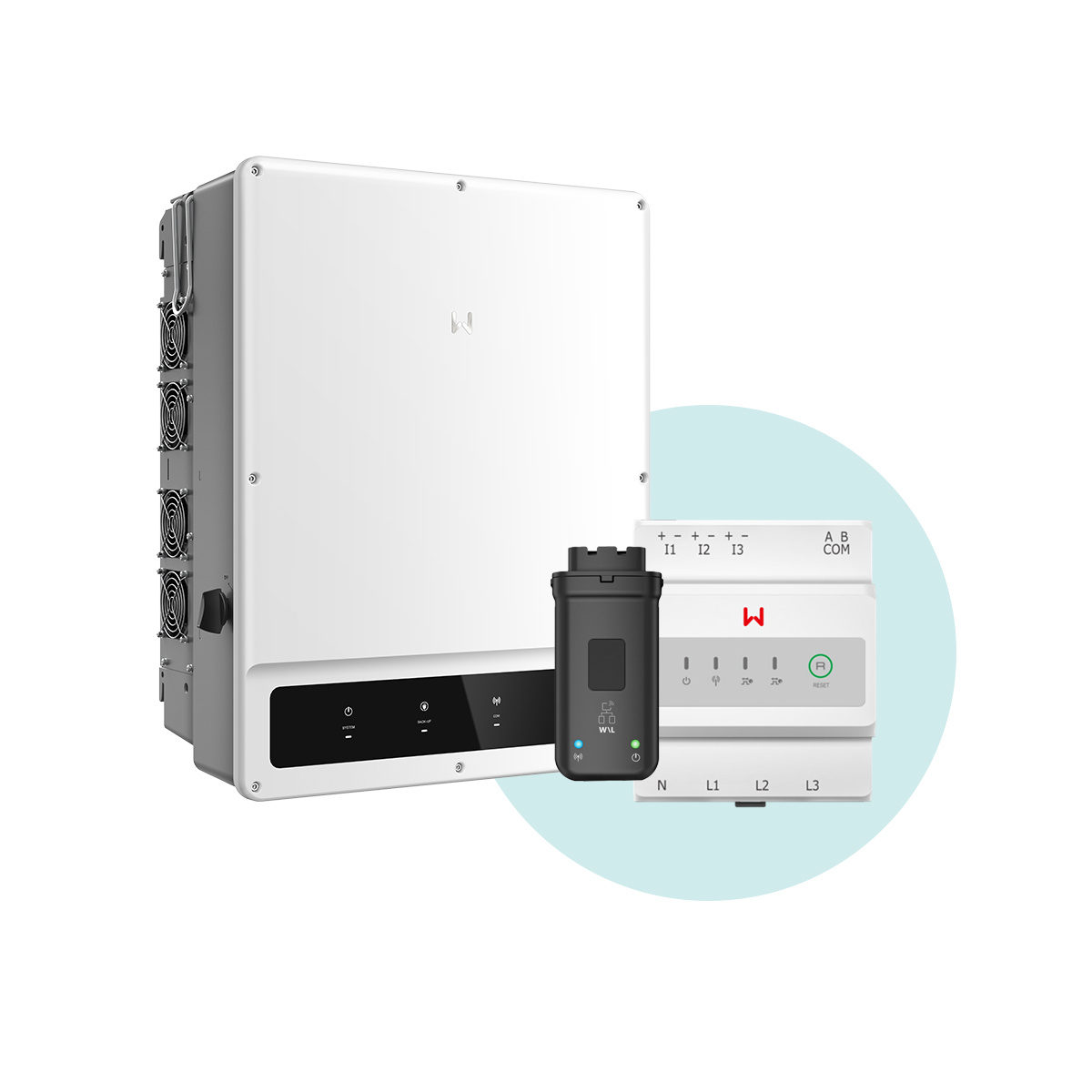

Goodwe GW50K-ET-10
Onduleur hybride 3~, AFCI
disponible
Merkmale
Profondeur [mm]
260
Largeur [mm]
520
Hauteur [mm]
660
Poids [kg]
65
Type de connexion CC
MC4
Tension d'entrée max. CC [V]
1,000
Puissance nominale CA [VA]
50,000
Puissance nominale CC [W]
51,250
nombre de phases d'entrée du réseau
3
Trackers MPP
4
Type d'onduleur
onduleur hybride
Classe de protection IP
66
WEEE-Registrier-Nr. DE
33154372
Description
The GW50K-ET hybrid inverter from GoodWe is a powerful, three-phase inverter that has been specially developed for commercial and industrial use.
With an AC output of 50 kW and up to four MPP trackers, it offers high flexibility and efficiency in energy conversion.
- DC overvoltage protection Type II included
- RCR connection included
- Dry contacts for switching of controllable loads
With an AC output of 50 kW and up to four MPP trackers, it offers high flexibility and efficiency in energy conversion.
- DC overvoltage protection Type II included
- RCR connection included
- Dry contacts for switching of controllable loads
WiFi/LAN Kit-20 included
DC Switch
for grid parallel conection
Protection class: IP66
Europ. Efficiency: 97,5%
H x W x D 660/520/260 mm
Max. connectablke PV Power: 75.000W
AC Nominal Power: 50.000W
max. DC Input Voltage: 1000V
Without Display
HV Battery (Please refer to the manufacturer's compatibility list)
Backup function possible in combination with the optional STS Box
Smartmeter GM330 included, CTs must be ordered separately (see accessories)
Warranty 5 Years
optional up to 20 years
The manufacturer's country-specific warranty & service conditions apply.
