N° d'article: 3001900020

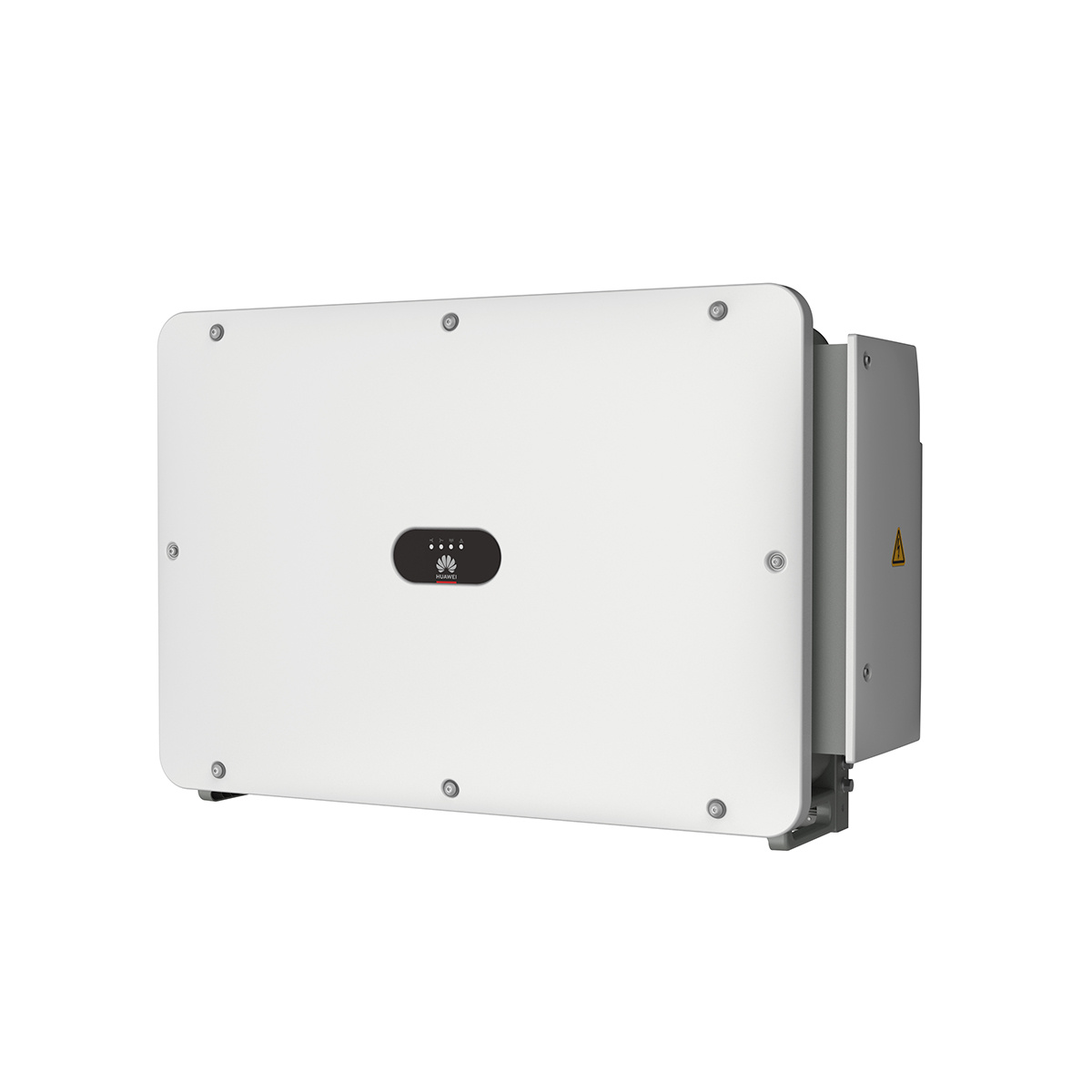

Huawei SUN2000-100KTL-M2
onduleur 3~
disponible
Merkmale
Profondeur [mm]
365
Largeur [mm]
1,035
Hauteur [mm]
700
Poids [kg]
93
Type de connexion CC
MC4
Tension d'entrée max. CC [V]
1,100
Puissance nominale CA [VA]
100,000
Puissance nominale CC [W]
102,000
nombre de phases d'entrée du réseau
3
Trackers MPP
10
Type d'onduleur
onduleur pour l'alimentation du réseau
Classe de protection IP
66
WEEE-Registrier-Nr. DE
39372368
Description
The HUAWEI SUN2000-100KTL-M2 is a three-phase string inverter with a maximum output power of 100 kW.
It offers high efficiency of up to 98.8% and features numerous intelligent protection and communication functions.
Key features include:
Maximum efficiency: 98.8% at 480 V, 98.6% at 400 V
European efficiency: 98.6% at 480 V, 98.4% at 400 V
Maximum input voltage: 1,100 V
Number of MPPTs: 10
Nominal AC power: 100,000 W
Maximum apparent AC power: 110,000 VA
Nominal output voltage: 380 V / 400 V / 480 V
Protection class: IP66
Cooling method: Intelligent air cooling
Operating temperature range: -25°C to 60°C
Maximum operating altitude: 4,000 m without derating
The inverter supports a variety of protection functions, including DC and AC overvoltage protection,
DC insulation resistance detection, Residual current monitoring and arc fault detection.
It offers high efficiency of up to 98.8% and features numerous intelligent protection and communication functions.
Key features include:
Maximum efficiency: 98.8% at 480 V, 98.6% at 400 V
European efficiency: 98.6% at 480 V, 98.4% at 400 V
Maximum input voltage: 1,100 V
Number of MPPTs: 10
Nominal AC power: 100,000 W
Maximum apparent AC power: 110,000 VA
Nominal output voltage: 380 V / 400 V / 480 V
Protection class: IP66
Cooling method: Intelligent air cooling
Operating temperature range: -25°C to 60°C
Maximum operating altitude: 4,000 m without derating
The inverter supports a variety of protection functions, including DC and AC overvoltage protection,
DC insulation resistance detection, Residual current monitoring and arc fault detection.
