N° d'article: 3601200026

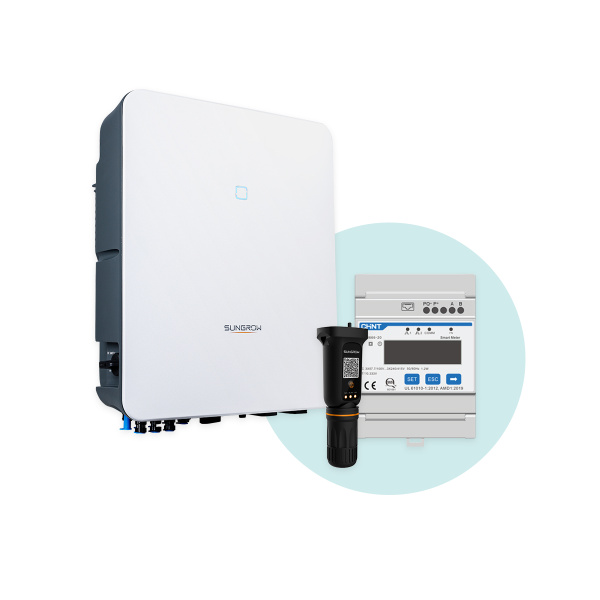

Sungrow SH6.0RT-20 V11
Onduleur hybride 3~
disponible par semaine: 15/2026
Merkmale
Profondeur [mm]
170
Largeur [mm]
460
Hauteur [mm]
540
Poids [kg]
27
Type de connexion CC
MC4
Tension d'entrée max. CC [V]
1,000
Puissance nominale CA [VA]
6,000
Puissance nominale CC [W]
6,155
Rendement max. () [%]
98,2
nombre de phases d'entrée du réseau
3
Trackers MPP
2
Type d'onduleur
onduleur hybride
Classe de protection IP
65
Description
Hybrid storage inverter for self-consumption increase for Sungrow SBR and BYD HVM/HVS high voltage batteries
max 9 kWp PV power
max 6.000 VA output power
Standard warranty 10 years
Please note the country-specific service and warranty conditions of the manufacturer!
Sungrow energy meter and winet-dongle are included in this article.
Sungrow inverters in combination with Optimizers from Tigo: Please be aware that Sungrow currently allows only 20% of Tigo equipped modules per inverter string. Background is a possible undervoltage of the string.
max 9 kWp PV power
max 6.000 VA output power
Standard warranty 10 years
Please note the country-specific service and warranty conditions of the manufacturer!
Sungrow energy meter and winet-dongle are included in this article.
Sungrow inverters in combination with Optimizers from Tigo: Please be aware that Sungrow currently allows only 20% of Tigo equipped modules per inverter string. Background is a possible undervoltage of the string.
Téléchargements
