N° d'article: 2001800046

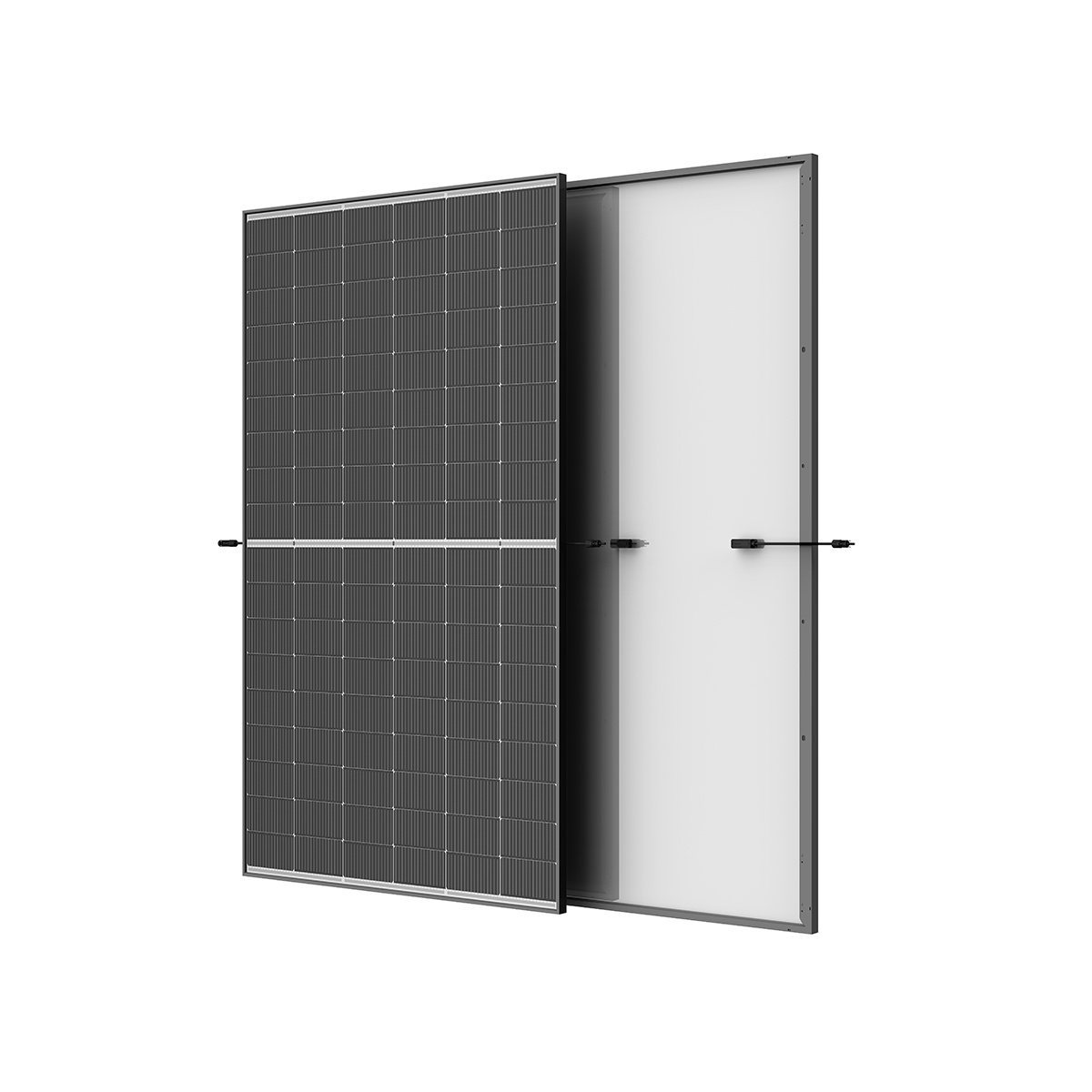

Trina TSM-515NEG18R.28
glass/glass, EVO2A, 1,3m, Vertex S+
disponible par semaine: 34/2026
Merkmale
Longueur [mm]
1,961
Largeur [mm]
1,134
Hauteur [mm]
30
Poids [kg]
23,5
Type de connexion CC
EVO2A
Tension max. du système [V]
1,500
Rendement de panneau [%]
23,2
Nombre de cellules
108
Technologie de cellules
TOPCON
Longueur câble de connexion [m]
1,3
Courant - protection de branche [A]
30
Couleur de la feuille arrière
blanc
Couleur cadre
Noir
Garantie de produit (ans)
25
WEEE-Registrier-Nr. DE
85507170
Technologie de panneau
cellules semi-coupées
Puissance STP (Pmpp) [Wp]
515
Charge de conception maximale Pression [N/m²]
3,600
Charge de conception maximale traction [N/m²]
1,600
Leistung/Fläche [Wp/m²]
232
The Trina NEG18R.28 is a high-performance glass-glass module from the Vertex S+ series featuring modern N-type i-TOPCon cell technology and an efficiency of up to 22.9 %. It impresses with high mechanical load capacity of up to 5,400 Pa snow load and 2,400 Pa wind load. Optimized module voltage allows for longer strings, while excellent resistance to fire, moisture, and corrosion ensures maximum safety and durability.
Module TechnologyThe Trina NEG18R.28 is based on advanced N-type i-TOPCon cells, which ensure higher efficiency, lower degradation, and excellent temperature stability through improved passivation and an optimized rear contact structure. The glass-glass construction additionally provides increased durability, superior fire resistance, and a significantly longer service life.
QualityTrina modules impress with high efficiency, solid workmanship, and an excellent price-performance ratio. Modern cell technologies such as N-type TOPCon ensure stable yields even under demanding conditions. The modules are considered reliable and durable, offering warranties of up to 25 years on the product and 30 years on performance, further underscoring their quality.
SustainabilityTrina modules stand for eco-friendly photovoltaics: by using high-efficiency cell technologies, they maximize energy yield and significantly reduce CO₂ emissions over their long service life. Additionally, Trina Solar focuses on sustainable production processes and recycling concepts to minimize the ecological footprint of the entire photovoltaic industry.
WarrantyThe Trina NEG18R.28 offers a 25-year product warranty covering material and workmanship defects, as well as a 30-year linear performance warranty. In the first year, at least 99 % of the nominal power is guaranteed, and after 30 years, the guaranteed performance is approximately 87.4 %. Both warranties apply when professionally installed and in compliance with the manufacturer's terms and conditions.
