N° d'article: 5202100035

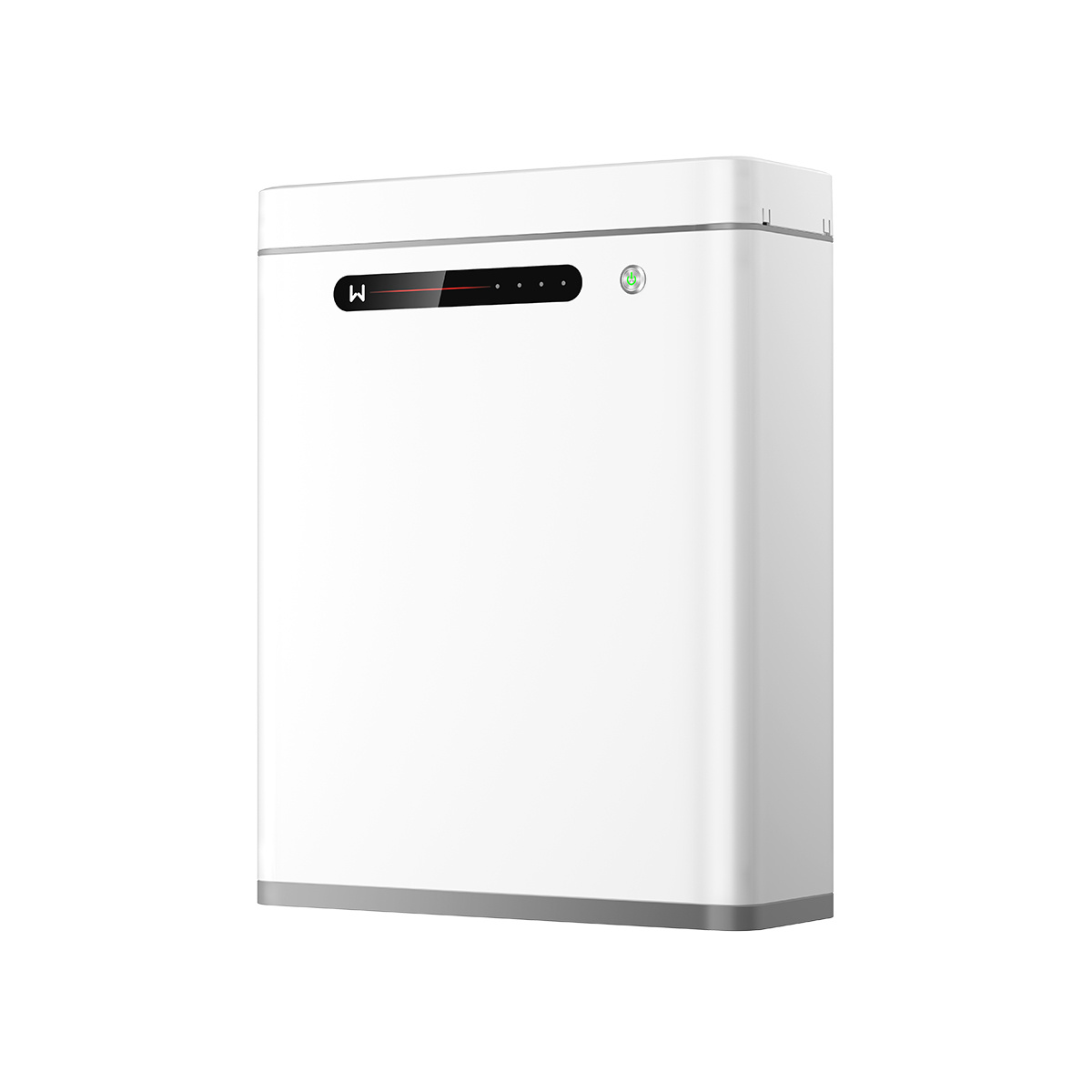

GoodWe Lynx Home U5.0-30
batterie 5 kWh
disponible
Merkmale
Profondeur [mm]
160
Largeur [mm]
460
Hauteur [mm]
580
Poids [kg]
50
capacité énergétique [kWh]
5
Profondeur de décharge max. par [%]
90
Type de batterie
Lithium
Tension nominale [V]
51,2
Batt-Reg.-Nr. DE
16,330,567
WEEE-Registrier-Nr. DE
33154372
Description
Only compatible with the inverter series ES G2, SBP G2, ES Uniq.
Please note the country certification of the inverters!
Please note the country certification of the inverters!
The scope of delivery includes floor mounting and an optional wall bracket.
Nominal battery energy: 5.12 kWh
Usable energy: 5 kWh
Cell type LiFePO4
Nominal voltage 51.2 V
Operating voltage range: 43.2~58.24V
Nominal charging current: 60 A
Max. Continuous charging current: 90 A
Nominal discharge current: 100 A
Max. Continuous discharge current: 100 A
Usable energy: 5 kWh
Cell type LiFePO4
Nominal voltage 51.2 V
Operating voltage range: 43.2~58.24V
Nominal charging current: 60 A
Max. Continuous charging current: 90 A
Nominal discharge current: 100 A
Max. Continuous discharge current: 100 A
Configuration with fire protection and heating function
