N° d'article: 5202600001

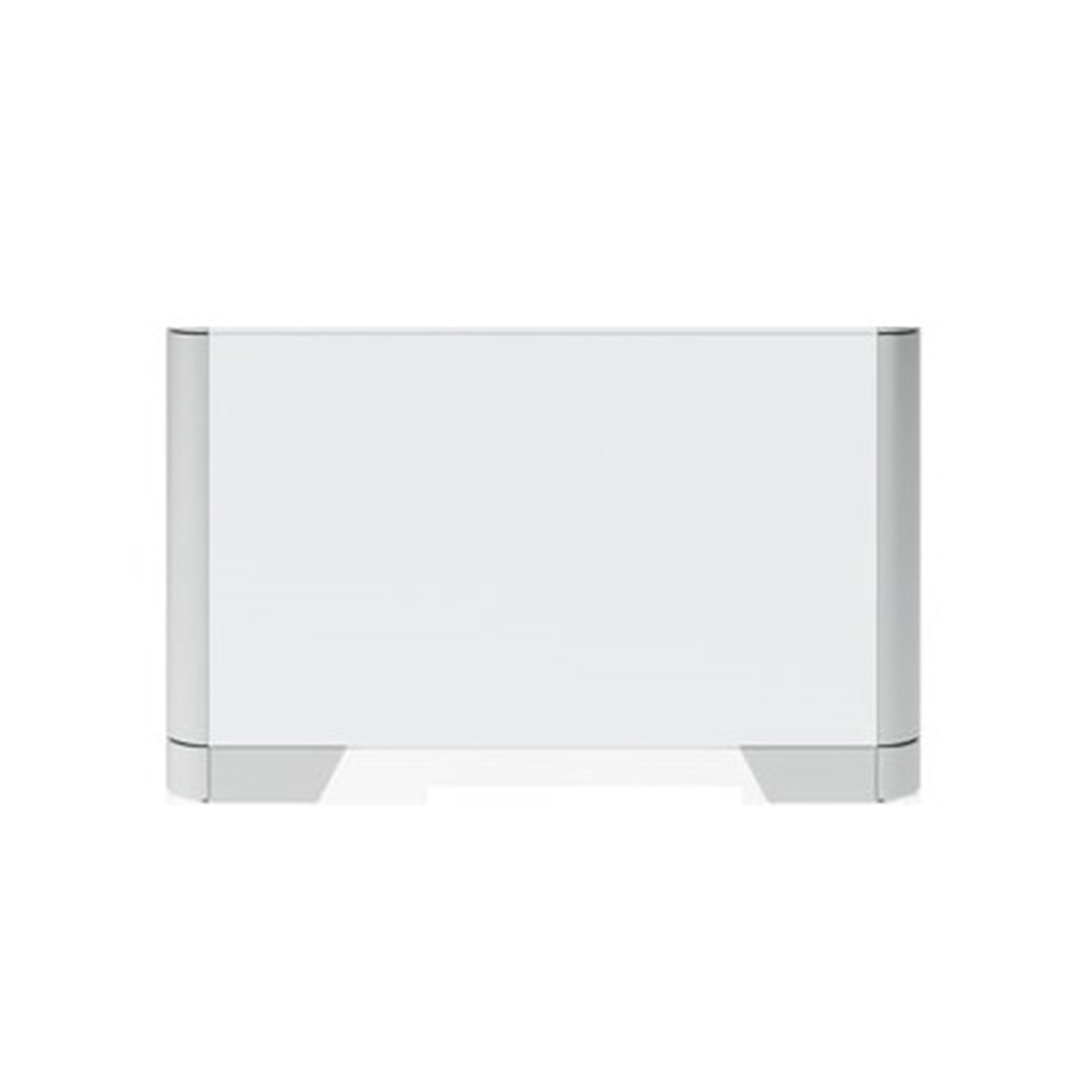

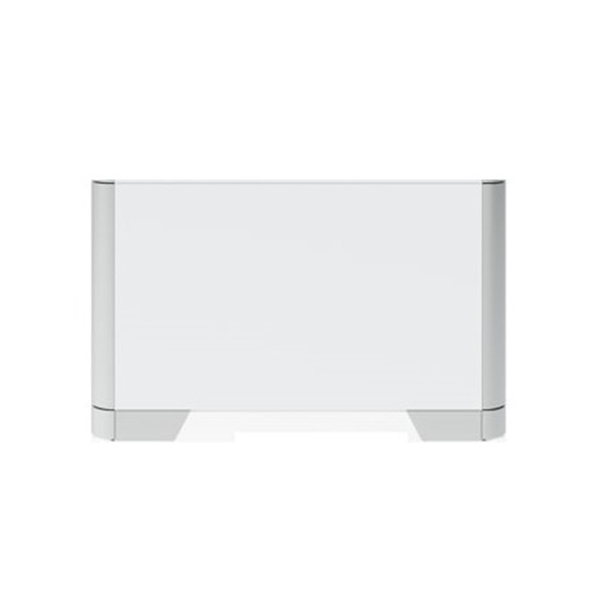

Huawei LUNA2000-5-E0
Module de batterie 5kWh
disponible
Merkmale
Profondeur [mm]
150
Largeur [mm]
670
Hauteur [mm]
360
Poids [kg]
50
capacité énergétique [kWh]
5
Profondeur de décharge max. par [%]
100
Type de batterie
Lithium
Tension nominale [V]
600
Batt-Reg.-Nr. DE
82,170,965
WEEE-Registrier-Nr. DE
39372368
Description
Single Module Luna S0 5kWh
Up to 3 modules stackable in one system
Compatible inverters:
SUN2000-2/3/3.68/4/4.6/5/6KTL-L1
SUN2000-8/10K-LC0
SUN2000-3/4/5/6/8/10KTL-M1
SUN2000-5/6/8/10/12K-MAP0
SUN2000-12/15/17/20/25K-MB0
Parallel connection of up to 2 S0 battery towers possible.
The LUNA2000 S1 series (6.9kWh) is not compatible with the Luna2000 S0 series (5kWh).
>>> Attention dangerous goods <<<
UN 3480
Lithium-ion battery 9, II (E)
>>>Note the transport data sheet! <<<
Up to 3 modules stackable in one system
Compatible inverters:
SUN2000-2/3/3.68/4/4.6/5/6KTL-L1
SUN2000-8/10K-LC0
SUN2000-3/4/5/6/8/10KTL-M1
SUN2000-5/6/8/10/12K-MAP0
SUN2000-12/15/17/20/25K-MB0
Parallel connection of up to 2 S0 battery towers possible.
The LUNA2000 S1 series (6.9kWh) is not compatible with the Luna2000 S0 series (5kWh).
>>> Attention dangerous goods <<<
UN 3480
Lithium-ion battery 9, II (E)
>>>Note the transport data sheet! <<<
