Przedmiot nr: 3602000077

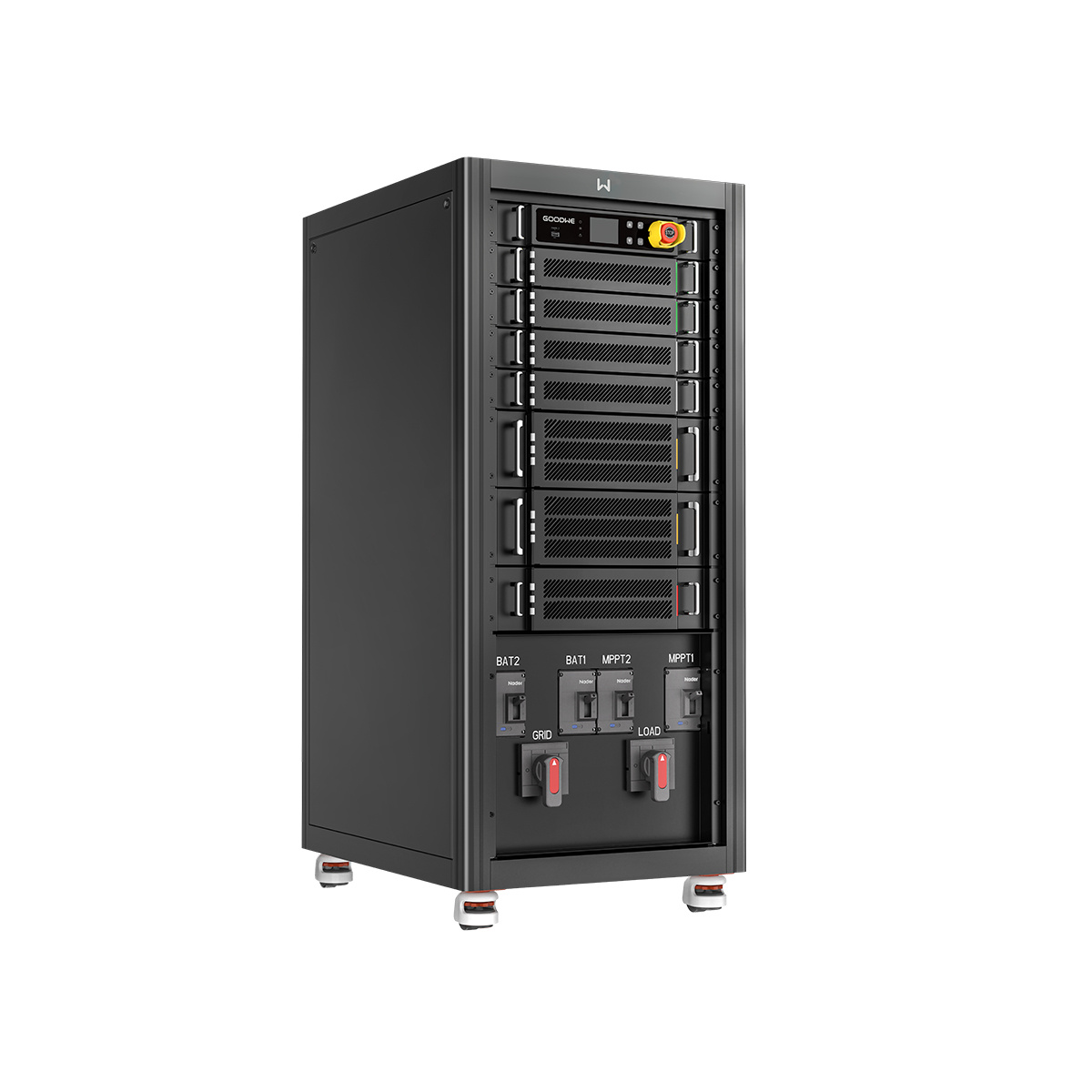

Goodwe GW100K07-ETC (with backup)
hybrid inverter 3~
dostępne według tygodnia: 17/2026
Merkmale
Głębokość [mm]
750
Szerokość [mm]
585
Wysokość [mm]
1,360
Masa [kg]
239,5
Konektor DC
Zacisk
Maks. napięcie DC [V]
1,000
Moc znamionowa AC [VA]
100,000
Wydajność maks. () [%]
97,6
liczba faz
3
Ilość trackerów MPP
2
Typ falownika
inwerter hybrydowy
Stopień ochrony IP
20
WEEE-Registrier-Nr. DE
33154372
Opis
Goodwe GW100K07-ETC
hybrid inverter compatible with Lynx C battery (101 kWh - 936 kWh)
number of MPPTs: 2
max. input current per MPPT: 100 A
max. short-circuit current per MPPT: 125 A
number of battery inputs: 2
max. charging/discharging urrent: 100 A
hybrid inverter compatible with Lynx C battery (101 kWh - 936 kWh)
number of MPPTs: 2
max. input current per MPPT: 100 A
max. short-circuit current per MPPT: 125 A
number of battery inputs: 2
max. charging/discharging urrent: 100 A
max. charging power 100 kW
max. discharging power 110 kW
potection class: IP20 (for indoor applications)
weight: 239,5 kg
dimensions (WxHxD) 585x1360x750 mm
potection class: IP20 (for indoor applications)
weight: 239,5 kg
dimensions (WxHxD) 585x1360x750 mm
