Wyprzedaż
Przedmiot nr: 3602000068

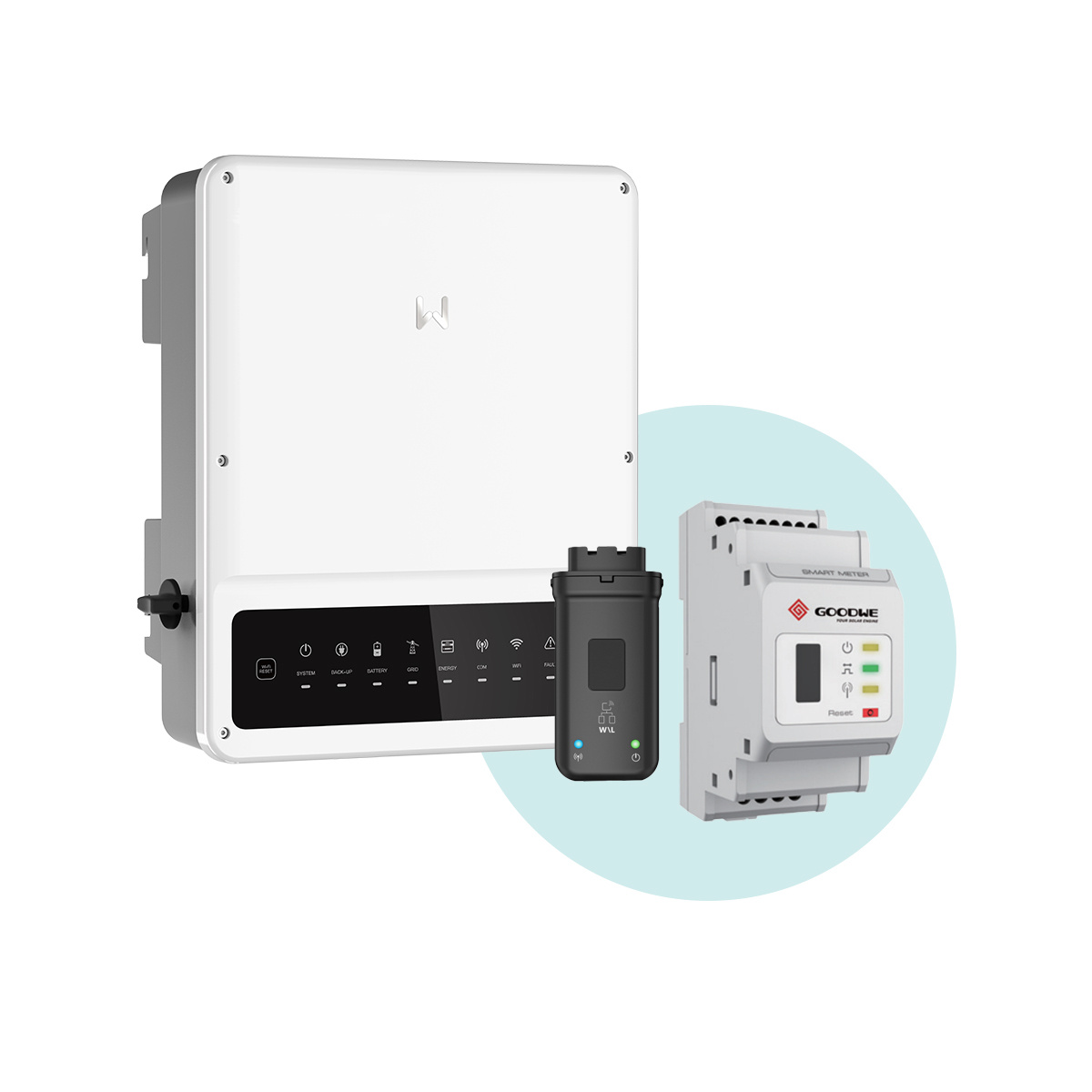

Goodwe GW5000N-EH Plus+ 16A
Hybrid Inverter 1~
dostępne
Merkmale
Głębokość [mm]
147
Szerokość [mm]
354
Wysokość [mm]
433
Masa [kg]
17,0
Konektor DC
MC4
Maks. napięcie DC [V]
580
Moc znamionowa AC [VA]
3,600
5,000
Moc DC [W]
5,000
Wydajność maks. () [%]
97,6
liczba faz
1
Ilość trackerów MPP
2
Typ falownika
inwerter hybrydowy
Stopień ochrony IP
65
WEEE-Registrier-Nr. DE
33154372
Opis
WLAN/Ethernet LAN (option with additional LAN-module)
DC-circuit breaker
according to VDE AR-N 4105
for grid connection
Degree of protection: IP65
euro efficiency: 97%
height x width x depth 433x354x147mm
max. DC power: 7500W
nominal power: AC 5000W
max. DC voltage: 580V
without Display
High voltage battery (for compatibility information please refer to the manufacturer's documents or to the IBC battery matrix)
Backup function
3-phase meter included (also usable for single phase systems)
5 years warranty
up to 10 years optional
Please note the country-specific service & warranty conditions of the manufacturer.
DC-circuit breaker
according to VDE AR-N 4105
for grid connection
Degree of protection: IP65
euro efficiency: 97%
height x width x depth 433x354x147mm
max. DC power: 7500W
nominal power: AC 5000W
max. DC voltage: 580V
without Display
High voltage battery (for compatibility information please refer to the manufacturer's documents or to the IBC battery matrix)
Backup function
3-phase meter included (also usable for single phase systems)
5 years warranty
up to 10 years optional
Please note the country-specific service & warranty conditions of the manufacturer.
Downloads
