Przedmiot nr: 3602000065

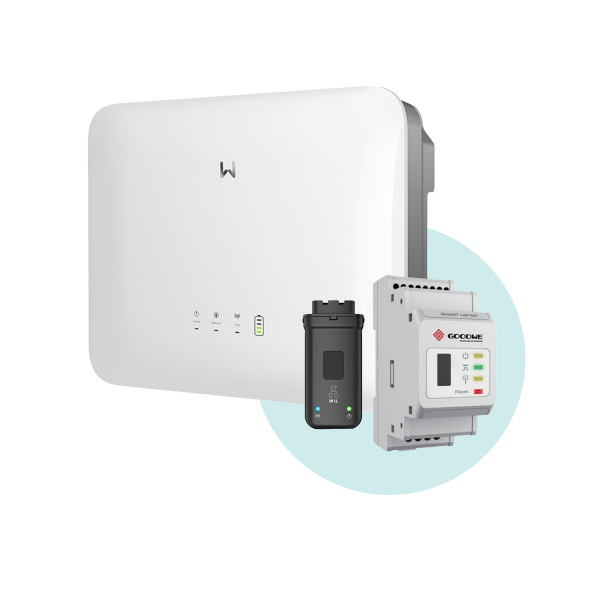

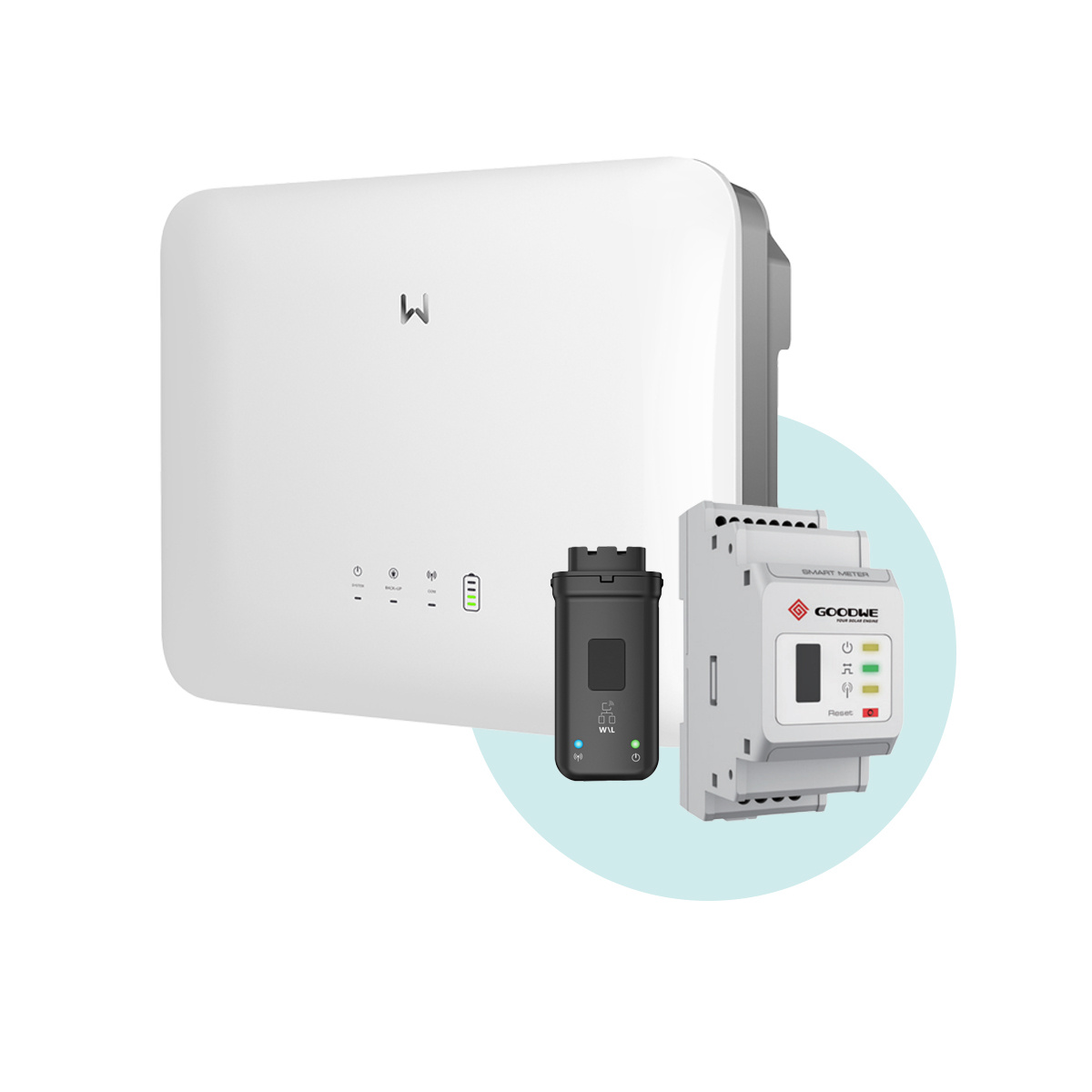

Goodwe GW6000-ES20
Falownik hybrydowy jednofazowy
dostępne
Merkmale
Głębokość [mm]
155
Szerokość [mm]
506
Wysokość [mm]
435
Masa [kg]
21,5
Konektor DC
MC4
Maks. napięcie DC [V]
600
Moc znamionowa AC [VA]
6,000
Moc DC [W]
6,000
Wydajność maks. () [%]
97,6
liczba faz
1
Ilość trackerów MPP
2
Typ falownika
inwerter hybrydowy
Stopień ochrony IP
65
WEEE-Registrier-Nr. DE
33154372
Opis
WLAN/Ethernet LAN (option with additional LAN-modul)
DC-circuit breaker
for grid connection
Degree of protection: IP65
euro efficiency: 96,7%
height x width x depth 435/506/155 mm
max. DC power: 9000W
nominal power: 6000W AC
max. DC voltage: 600V
without Display
48V battery (for compativbility information please refer to the manufacturer's documents or to the IBC battery matrix)
Backup function (max 6000W)
5 years warranty
up to 10 years optional
Please note the country-specific service & warranty conditions of the manufacturer.
DC-circuit breaker
for grid connection
Degree of protection: IP65
euro efficiency: 96,7%
height x width x depth 435/506/155 mm
max. DC power: 9000W
nominal power: 6000W AC
max. DC voltage: 600V
without Display
48V battery (for compativbility information please refer to the manufacturer's documents or to the IBC battery matrix)
Backup function (max 6000W)
5 years warranty
up to 10 years optional
Please note the country-specific service & warranty conditions of the manufacturer.
Downloads
