Przedmiot nr: 3001900002
Huawei SUN2000-330KTL-H1
inverter 3~ 800V AC
dostępne według tygodnia: 44/2025
Merkmale
Głębokość [mm]
395
Szerokość [mm]
1,048
Wysokość [mm]
732
Masa [kg]
112
Konektor DC
H4
Maks. napięcie DC [V]
1,500
Moc znamionowa AC [VA]
300,000
Moc DC [W]
360,000
Długość kabla przyłączeniowego [m]
2
liczba faz
3
Ilość trackerów MPP
6
Typ falownika
inwerter sieciowy
Stopień ochrony IP
66
WEEE-Registrier-Nr. DE
39372368
Opis

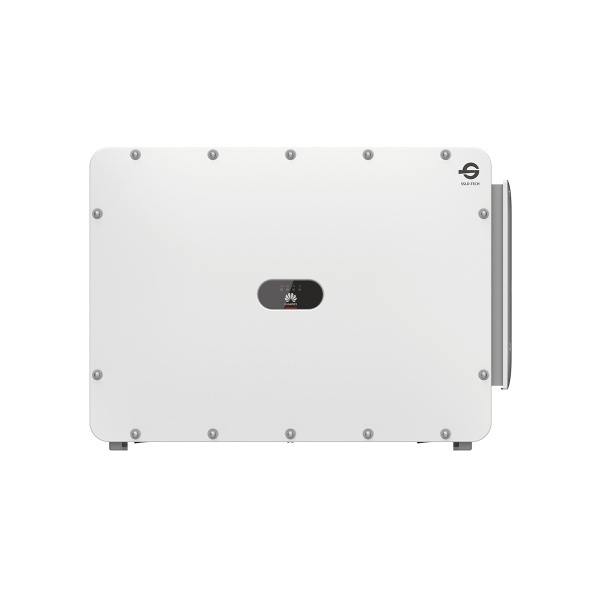

The HUAWEI SUN2000-330KTL-H1 is a three-phase string inverter with a maximum output power of 330 kW.
It features high efficiency of up to 99.03% and offers numerous intelligent protection and communication functions.
Key features include:
Maximum efficiency: 99.03%
European efficiency: 98.8%
Maximum input voltage: 1,500 V
Number of MPPTs: 6
Rated AC power: 300,000 W
Maximum apparent AC power: 330,000 VA
Rated output voltage: 800 V
Protection class: IP66
Cooling method: Intelligent air cooling
Operating temperature range: -25°C to 60°C
Maximum operating altitude: 4,000 m without derating
The inverter supports a wide range of of protection functions, including DC and AC overvoltage protection,
Maximum efficiency: 99.03%
European efficiency: 98.8%
Maximum input voltage: 1,500 V
Number of MPPTs: 6
Rated AC power: 300,000 W
Maximum apparent AC power: 330,000 VA
Rated output voltage: 800 V
Protection class: IP66
Cooling method: Intelligent air cooling
Operating temperature range: -25°C to 60°C
Maximum operating altitude: 4,000 m without derating
The inverter supports a wide range of of protection functions, including DC and AC overvoltage protection,
DC insulation resistance detection and residual current monitoring."
