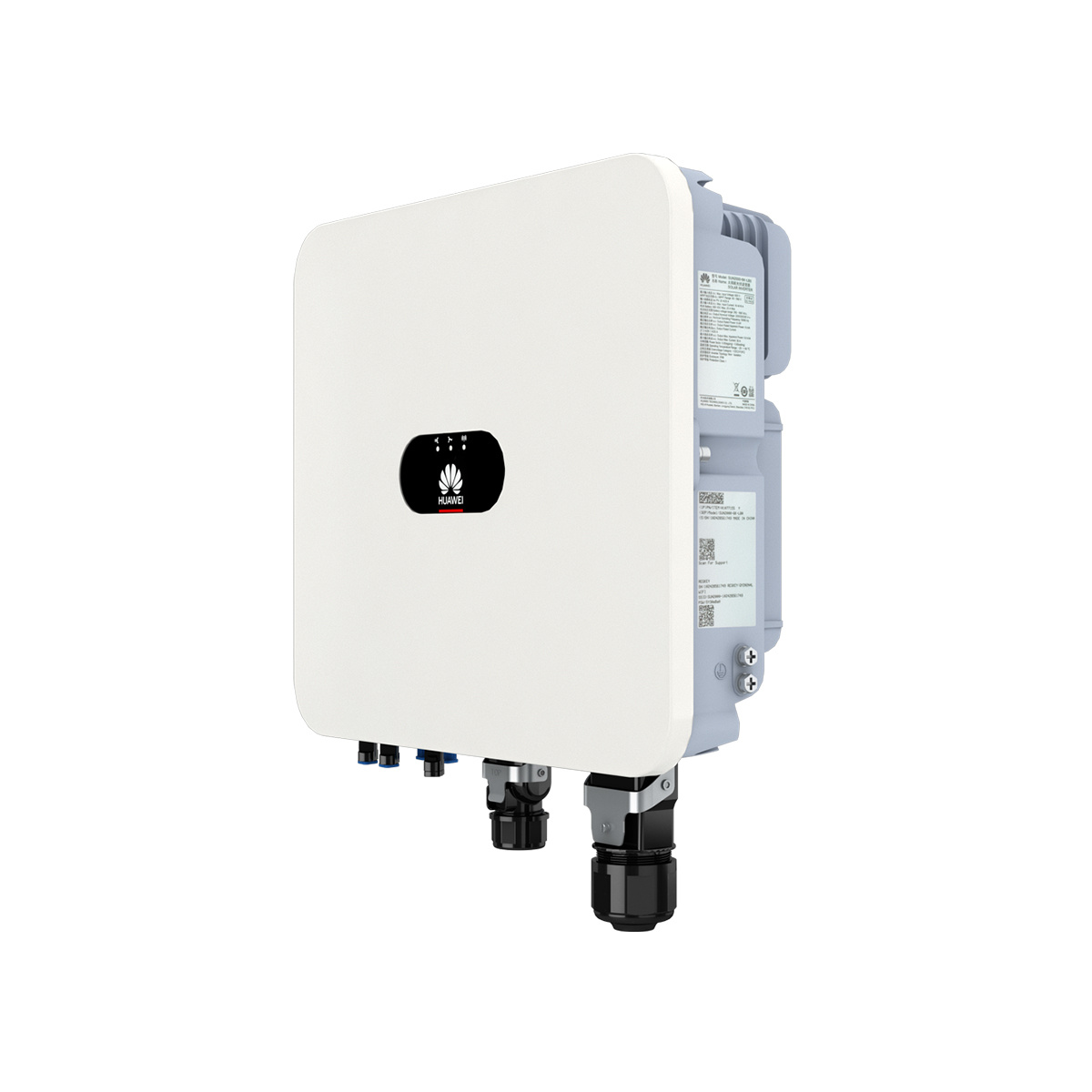

Huawei SUN2000-4K-LB0

The Huawei SUN2000-4K-LB0 is a single-phase hybrid string inverter for small to medium-sized PV systems with storage option. It provides two independent MPP trackers, enabling flexible string design for different roof orientations or module inclinations. The AC rated power of 4.0kVA covers typical single-phase grid connections in residential and small commercial environments. On the DC side, the device operates with a maximum input voltage of 600V and MC4 connectors, simplifying integration of common module strings. The hybrid system topology allows the direct connection of compatible Huawei battery systems without external battery inverters. With protection class IP66, the inverter is suitable for protected outdoor installations. The compact enclosure weight of around 15kg facilitates handling and installation on site.

• TechnologyThe SUN2000-4K-LB0 uses a transformerless string inverter topology with integrated hybrid functionality. Two MPP trackers enable independent control of two PV input areas, which reduces yield losses, especially in partially shaded generator areas. The DC rated power is around 4.1kW, allowing a practical design with a moderate generator oversizing factor. The hybrid architecture enables bidirectional energy flow between PV generator, battery, and grid without additional external power electronics. Protection functions such as grid and system protection, DC and AC surge protection, as well as overcurrent monitoring are already integrated and designed for grid-compliant operation.

  Power electronics
  • Two independent MPP trackers for separate string control on different roof areas.
  • Transformerless hybrid topology for direct coupling of PV generator and battery system.
  • Single-phase grid connection with 4.0kVA AC rated power for typical household connections.
  • DC design up to 600V for common module string lengths in the residential segment.
• ConnectivityFor monitoring and parameterization, the inverter provides several communication interfaces. RS485 is integrated as standard and is typically used for Modbus-based system communication, smart meter connection, or component networking. In addition, integration into IP-based networks can be achieved via optional WLAN or Ethernet dongles. This enables connection to the Huawei monitoring ecosystem, including remote monitoring, firmware updates, and system analysis. The modular communication architecture allows interfaces to be configured as needed without modifying the inverter's hardware base.

  Interfaces & Monitoring
  • RS485 integrated for stable fieldbus communication and energy meter connection.
  • WLAN and Ethernet connectivity achievable via optional smart dongle.
  • Remote monitoring and system management via Huawei monitoring system possible.
  • Firmware updates and parameterization can be carried out without on-site service deployment.
• WarrantyThe SUN2000-4K-LB0 is covered by the manufacturer-defined standard product warranty for inverters of this series. This covers material and manufacturing defects under intended use. The warranty conditions are designed for continuous operation in grid-connected PV and hybrid systems and take into account thermal as well as electrical loads in typical system operation. Optionally available warranty extensions can be used on a project-specific basis to secure longer operating periods.

  Warranty coverage
  • Standard product warranty on inverter components according to manufacturer definition.
  • Coverage of material and manufacturing defects within the intended area of use.
  • Optional extensions allow customized durations for project requirements.
  • Designed for continuous grid-connected operation in PV and hybrid systems.
• SustainabilityThe inverter is designed for high energy efficiency and long service life, reducing resource use over its lifecycle. The compact design reduces material usage per installed capacity. In addition, the manufacturer uses optimized packaging concepts and recyclable materials to minimize transport volume and waste generation. Components and electronics are designed so that, at the end of their service life, they can be properly disposed of and valuable materials recovered.

  Ecological aspects
  • Compact design reduces material usage per installed kilovolt-ampere.
  • High efficiency lowers losses and increases usable PV yield.
  • Recycling-compliant design of electronic assemblies and housing components.
  • Optimized packaging to reduce transport and disposal effort.
• QualityThe device features a robust, weatherproof enclosure with IP66 protection class and is therefore protected against dust and powerful water jets. This design allows use in demanding environmental conditions and increases operational reliability for outdoor installation. The electrical design considers typical single-phase grid requirements and integrates extensive protection and monitoring functions. The moderate enclosure size and a weight of approximately 15kg support installation-friendly deployment even in confined spaces.

  Mechanical & electrical quality
  • IP66 protection for reliable operation in outdoor installations.
  • Robust metal housing for thermal stability and mechanical durability.
  • Integrated protection functions to safeguard the grid and PV generator.
  • Installation-friendly weight facilitates single-person installation.
• ExpandabilityThe SUN2000-4K-LB0 can be modularly integrated into larger energy systems. Via the hybrid interface, compatible Huawei battery systems can be connected directly, enabling self-consumption optimization and backup power concepts. In addition, smart meters, communication dongles, or optimization-based components can be integrated into the system. Thanks to standardized interfaces, the system remains consistent and easy to maintain even with later expansions or functional upgrades.

  System integration
  • Direct battery connection possible without additional battery inverter.
  • Retrofit communication and monitoring modules for system expansion.
  • Integration of energy meters for self-consumption and load management.
  • Scalable within the Huawei hybrid ecosystem for future requirements.
