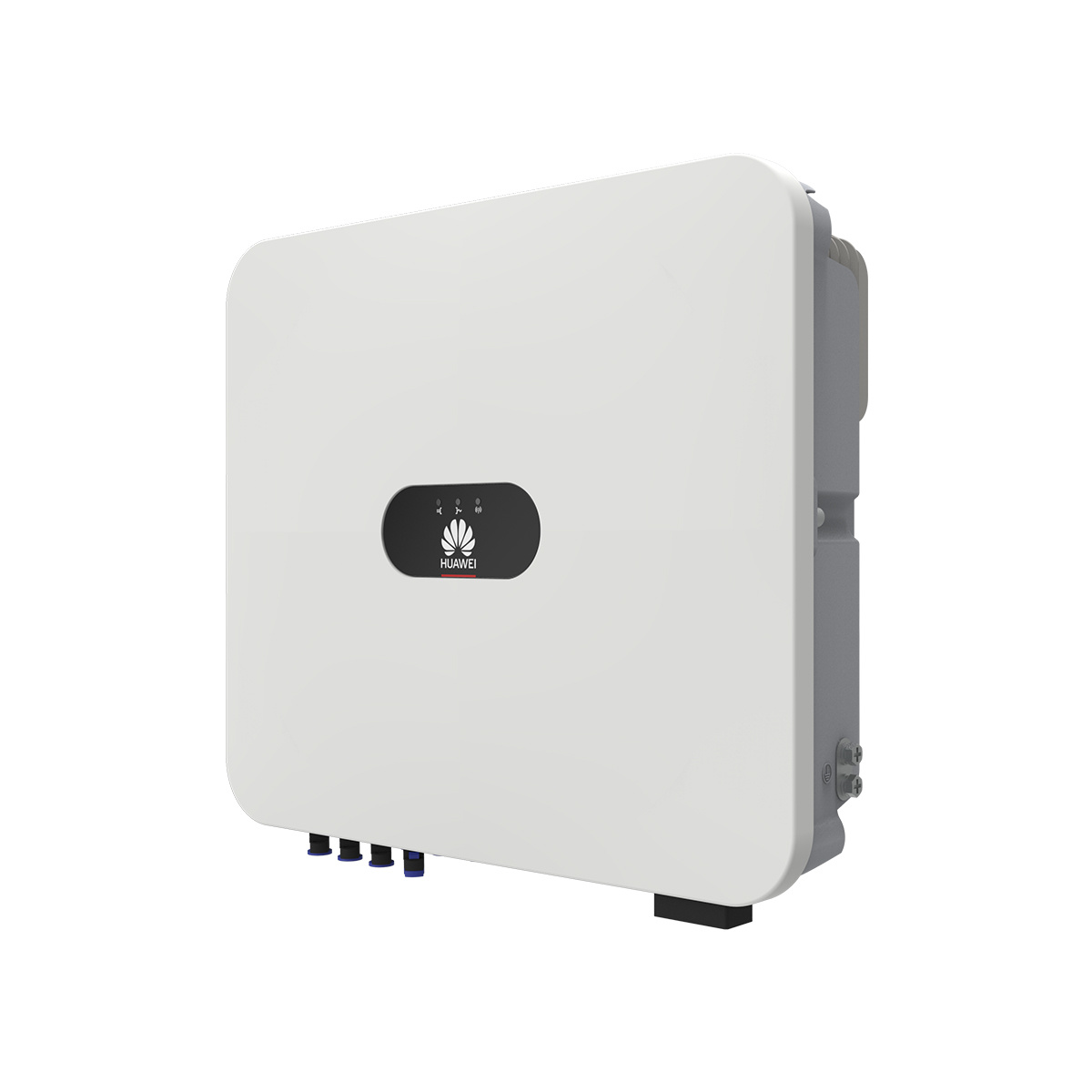

Huawei SUN2000-8K-LC0

The Huawei SUN2000‑8K‑LC0 is a single-phase hybrid string inverter for PV systems up to 12kWp and an AC nominal output of 8kW. With three MPP trackers and a wide MPPT operating range of 40 to 560V, it is suitable for complex string layouts and different module orientations. The maximum efficiency of 98.1% and 97.5% European efficiency reduce conversion losses during continuous operation. The device is battery-ready and compatible with Huawei LUNA2000 high-voltage storage systems, including grid-connected and backup operation via SmartGuard components. Extensive protection functions such as AI-supported arc fault detection (AFCI), surge and insulation monitoring as well as IP66 protection enable safe use in demanding installation environments. The compact design at around 14.5kg supports efficient single-person installation.

• TechnologyThe inverter operates as a single-phase hybrid smart energy controller with direct coupling of PV generator, grid and optional high-voltage storage. Three independent MPP trackers with up to 16A input current each enable high design flexibility for module strings and improve yield under partial shading. The nominal DC power is 10kW, and the recommended maximum PV generator power is 12kWp. Natural convection combined with demand-based smart air cooling ensures stable performance even at high ambient temperatures. The integrated AFCI function actively detects arc faults and increases fire protection in DC installations.

  Electrical core data
  • Maximum DC input voltage of 600V allows short strings with standard market module voltages
  • MPPT voltage range 40–560V supports flexible system design and early start-up
• ConnectivityThe SUN2000‑8K‑LC0 features an integrated RS485 interface as standard for connecting smart meters, SmartGuard backup boxes and battery systems. Network and Wi-Fi communication are implemented via optional Huawei Smart Dongles, allowing the communication setup to be scaled according to project requirements. Integration into the FusionSolar platform enables commissioning, monitoring and firmware updates via mobile devices or web interfaces. For remote locations, optional 4G connectivity is available, enabling systems without local network infrastructure to be monitored.

  Interfaces and monitoring
  • RS485 for meters, storage and energy management components
  • Ethernet or Wi-Fi via Smart Dongle, alternatively mobile connectivity via 4G dongle
• WarrantyThe Huawei SUN2000‑8K‑LC0 is covered by a manufacturer standard product warranty of 10 years. This covers material and manufacturing defects and forms a common basis for long-term use in residential and small commercial applications. Depending on the market, optional warranty extension conditions may be available, which is particularly relevant for projects with long operating periods. The warranty is designed for proper operation in accordance with installation and connection specifications.
• SustainabilityHuawei addresses sustainability both in device operation and in product design. The high efficiency systematically reduces energy losses over the entire service life. Packaging and design are optimized for reduced material volume and lower plastic content. Additionally, take-back and recycling programs for old devices exist to return valuable materials from electronic components to the material cycle. These aspects support resource-efficient project implementation in PV system construction.
• QualityThe housing is certified according to IP66 and is therefore protected against dust and powerful water jets, enabling outdoor use in various climate zones. The permissible operating temperature range extends from −25°C to +60°C with power derating at high altitudes. Extensive protection functions such as DC reverse polarity protection, type II surge protection on both DC and AC sides, as well as grid and residual current monitoring increase operational safety. Compliance with relevant IEC and EN standards facilitates grid-compliant integration.
• ExpandabilityThe SUN2000‑8K‑LC0 is fully battery-ready and compatible with Huawei LUNA2000 high-voltage storage systems in various capacity levels. In single-phase backup systems, one inverter can manage up to two storage towers. Backup power operation can be implemented via SmartGuard components. In addition, up to three inverters can be operated in parallel within one system, enabling modular expansion of AC power. Support for Huawei power optimizers extends the range of applications on shaded generator surfaces.
