Item No.: 2006400011

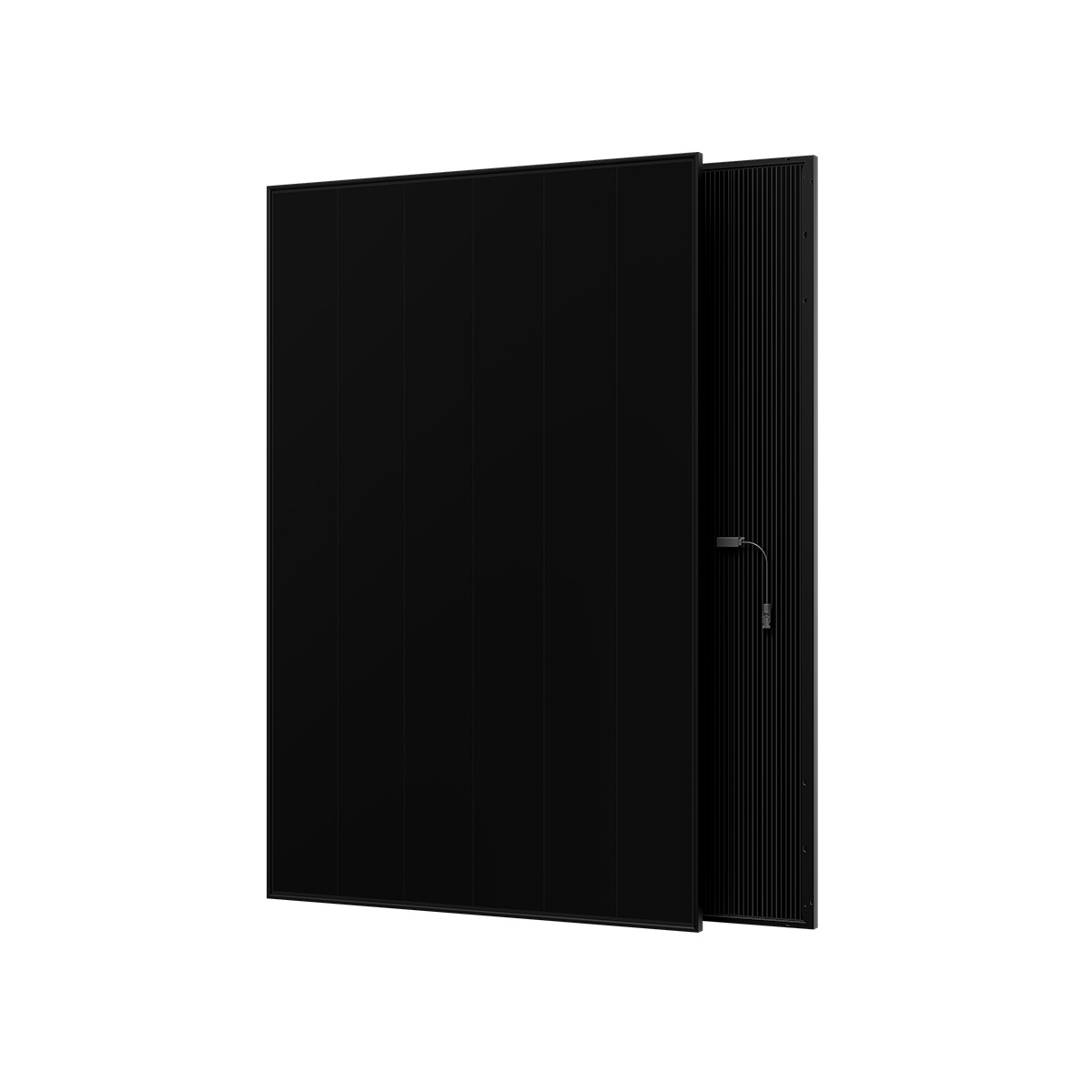

AIKO A480-MCE54Db
bifacial, glas/glas, fullblack, Neostar Pro 3S+54
available by week: 15/2026
Merkmale
Length [mm]
1,762
Width [mm]
1,134
Height [mm]
30
Weight [kg]
24,2
Type of DC-connector
EVO2A
max. System Voltage [V]
1,500
Module Efficiency [%]
24
Number of cells
108
Cell technology
ABC
Length of connecting cable [m]
1,2
Current value String fuse [A]
30
Color backsheet
BLACK
Frame Colour
BLACK
Product warranty (years)
30
Module design
HALF CELL
Nominal Power [Wp]
480
Max. design load pressure [N/m²]
3,600
Max. design load tension [N/m²]
1,600
Description
The AIKO MCE54-Db is a glass-glass solar module from the Neostar 3S+ series with a power output of 460–490 W and an efficiency of up to 24.5%. It utilizes advanced N-type ABC technology, which ensures high efficiency, optimized performance under partial shading, and improved temperature stability. Thanks to robust dual glass, a black aluminum frame, and an elegant full-black design, it offers maximum durability and an aesthetic solution for demanding PV systems.
Module TechnologyABC (All-Back-Contact) technology moves all electrical contacts to the back of the solar cell, leaving the front completely free of metallic conductors and allowing more light to be absorbed. This reduces internal resistance, increases efficiency, and improves performance in low-light conditions as well as temperature stability.
QualityAIKO modules stand for the highest quality, meeting strict international certifications such as IEC 61215 and IEC 61730, having been recognized as "Top Performers" in independent tests, and offering exceptional efficiency and longevity through their robust ABC technology. Their resistance to extreme weather conditions, low degradation, and multi-award-winning manufacturing standards make them one of the most reliable solutions in the solar market.
SustainabilityAIKO focuses on the Eco-Design principle throughout the entire lifecycle of its modules – from material selection and production to packaging, transport, use, and recycling. The company strives for exemplary green manufacturing at its smart Jinan factory through 100% renewable electricity, 90% water recycling, and 30% waste heat utilization. At the same time, the company avoids expensive silver and uses copper-based interconnects, which conserves resources, minimizes thermal stress risk, and improves durability and performance under real-world conditions.
WarrantyThe AIKO MAH54-Db offers a 25-year product warranty and a 30-year linear power warranty. The degradation is very low: a maximum of ≤1% in the first year and subsequently ≤0.35% per year, ensuring high energy yields over the long term.
