Item No.: 2006400010

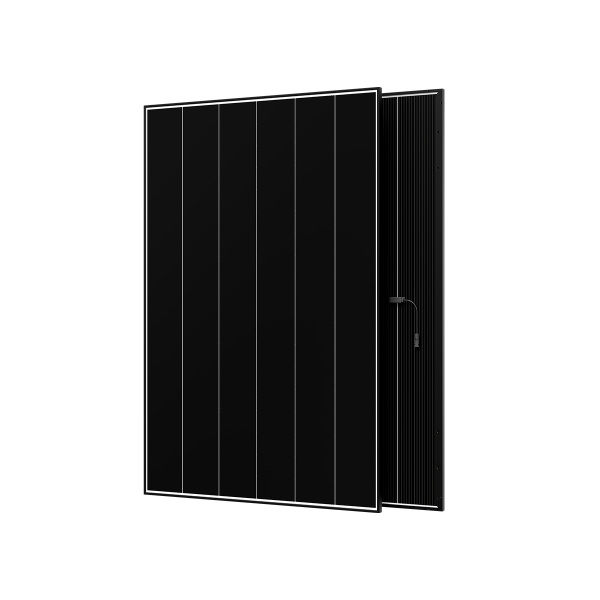

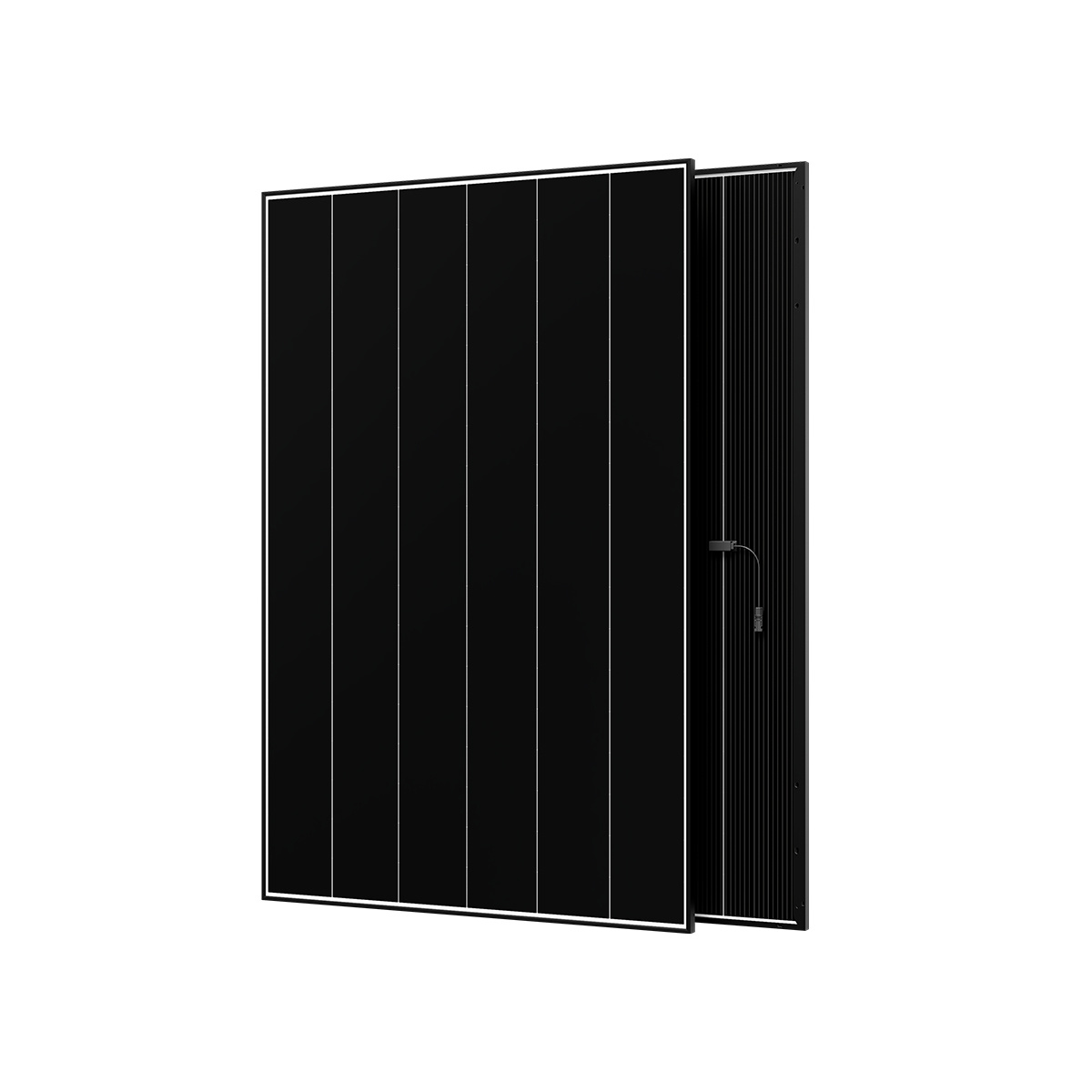

AIKO A490-MCE54Dw
bifacial, glas/glas, white, Neostar 3P+54
available by week: 28/2026
Merkmale
Length [mm]
1,762
Width [mm]
1,134
Height [mm]
30
Weight [kg]
24,2
Type of DC-connector
EVO2A
max. System Voltage [V]
1,500
Module Efficiency [%]
24,3
Number of cells
108
Cell technology
ABC
Length of connecting cable [m]
1,2
Current value String fuse [A]
30
Color backsheet
WHITE
Frame Colour
BLACK
Product warranty (years)
15
WEEE-Registrier-Nr. DE
52182890
Module design
HALF CELL
Nominal Power [Wp]
490
Max. design load pressure [N/m²]
3,600
Max. design load tension [N/m²]
1,600
Description
The AIKO MCE54Dw is a high-quality, bifacial glass-glass solar module from the Neostar 3P+ series with an output of 465 to 495 Wp and a peak efficiency of up to 24.8%. The proven N-type ABC technology (All-Back-Contact) ensures maximum light absorption, reduced losses, and excellent temperature and partial shade stability through rear contacting.
Module TechnologyThe AIKO MCE54Dw utilizes ABC technology (All-Back-Contact), where all electrical contacts are moved to the rear of the cells to keep the entire front clear for maximum light absorption, thereby significantly increasing efficiency. Additionally, it is based on N-type silicon, which ensures high temperature stability, low degradation, and excellent performance even under low irradiance.
QualityAIKO modules stand for the highest quality, as they meet strict international certifications such as IEC 61215 and IEC 61730, have been recognized as "Top Performers" in independent tests, and offer exceptional efficiency and longevity through their robust ABC technology. Their resistance to extreme weather conditions, low degradation, and multiple award-winning manufacturing standards make them one of the most reliable solutions in the solar market.
SustainabilityAIKO focuses on the Eco-Design principle throughout the entire lifecycle of its modules – from material selection and production to packaging and transport, through to use and recycling – and strives for exemplary green manufacturing in its smart Jinan factory through 100% renewable electricity, 90% water recycling, and 30% waste heat utilization. At the same time, the company avoids expensive silver and uses copper-based interconnects, thereby conserving resources, minimizing thermal stress risk, and improving durability and performance under real-world conditions.
WarrantyThe AIKO MCE54Dw offers a 15-year product warranty, which can optionally be extended to 25 years, covering material and manufacturing defects. Additionally, there is a 30-year linear performance warranty, which guarantees a maximum of 1% power loss in the first year and no more than 0.35% per year thereafter.
