Item No.: 2006300041
DMEGC DM460G12RT-B48HBT
glass/glass, transparent, EVO2A, Infinity RT
available by week: 28/2026
Merkmale
Length [mm]
1,762
Width [mm]
1,134
Height [mm]
30
Weight [kg]
24
Type of DC-connector
EVO2A
max. System Voltage [V]
1,500
Module Efficiency [%]
23
Number of cells
96
Cell technology
TOPCON
Length of connecting cable [m]
1,2
Current value String fuse [A]
30
Color backsheet
TRANSPARENT
Frame Colour
BLACK
Product warranty (years)
25
WEEE-Registrier-Nr. DE
50188598
Module design
HALF CELL
Nominal Power [Wp]
460
Max. design load pressure [N/m²]
3,600
Max. design load tension [N/m²]
1,600
Description

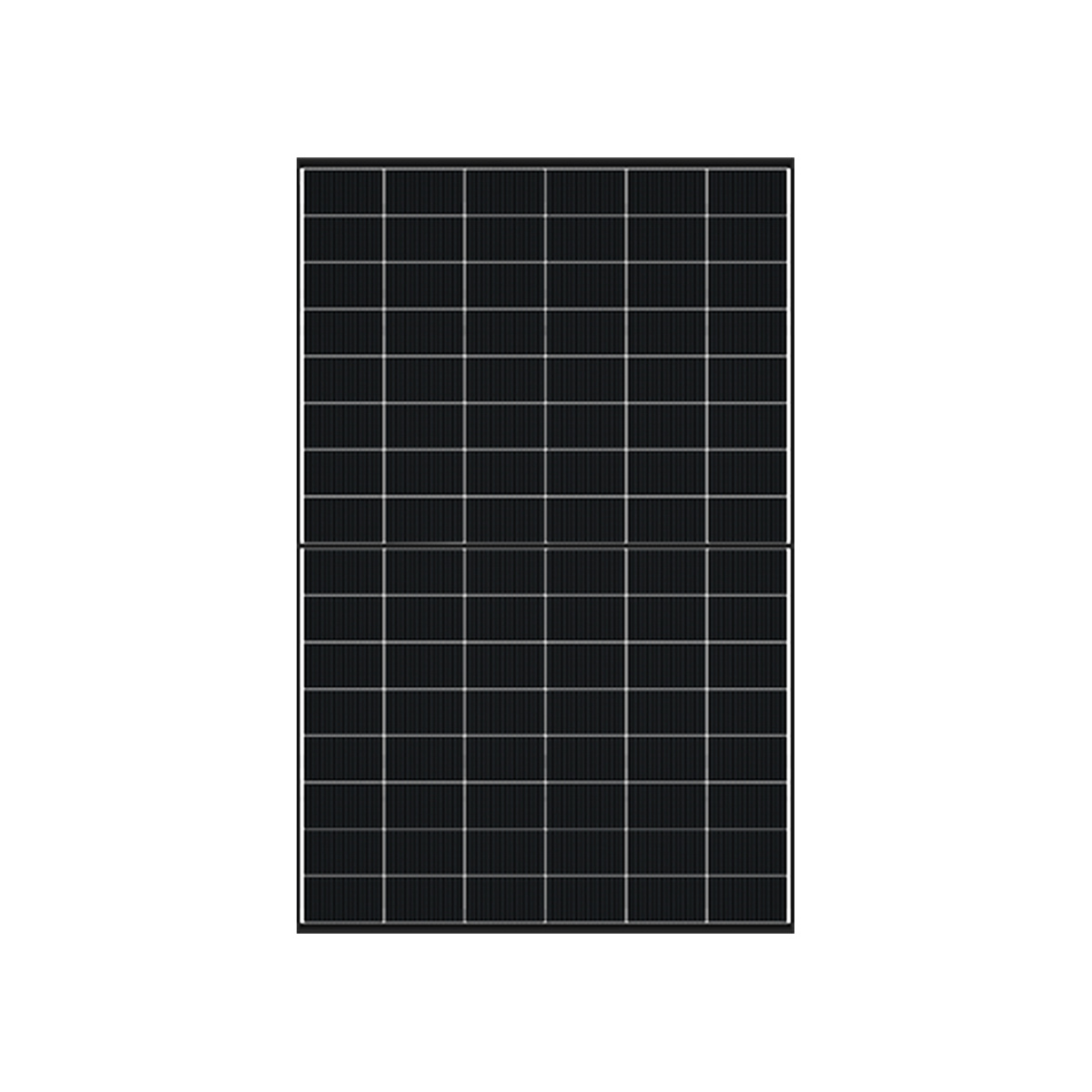

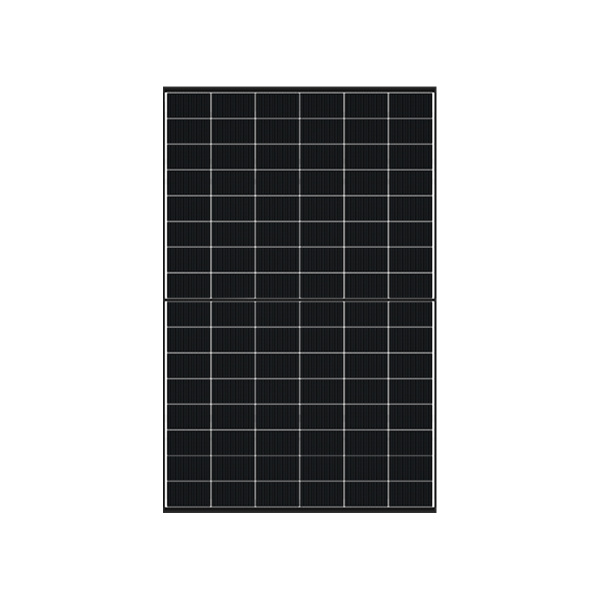

The DMEGC G12RT-B48HBT is a bifacial glass-glass module featuring 96 N-type TOPCon cells in a 6×16 layout, achieving a module efficiency of up to 23.5%. The robust double-glass construction, with 2 mm tempered front and rear glass, ensures high mechanical stability and long-lasting weather resistance, certified for extreme conditions such as hail and dust. Additionally, the module features "Advanced Black Technology" for enhanced aesthetics, combined with an impressive performance guarantee: 99% in the first year and a maximum annual degradation of 0.4% over 30 years.
Module TechnologyThe DMEGC G12RT-B48HBT relies on advanced N-type TOPCon cell technology, which ensures high efficiency, low degradation, and improved temperature stability through a tunnel oxide passivation layer. The glass-glass construction with "Advanced Black Technology" further provides increased mechanical strength, enhanced weather resistance, and an aesthetically pleasing appearance.
QualityDMEGC modules are regarded as high-quality, reliable, and efficient, with efficiencies up to 21.5% and good performance even in low-light or partial shading conditions. They are Bloomberg Tier 1 listed and have been multiple times recognized as a "Top Performer" in independent tests, receiving top marks for mechanical load capacity, temperature coefficient, and PID resistance, confirming their durability and quality.
SustainabilityDMEGC modules represent the highest sustainability standards. Production is carried out using 100% renewable energy, and all plants are certified as CO²-neutral by TÜV SÜD. All products are PFAS-free, RoHS and REACH compliant, and feature a low carbon footprint, proven by EPD, PEP, and ISO14067 certificates. For outstanding ESG performance, DMEGC was also awarded the EcoVadis Silver Medal.
WarrantyThe DMEGC G12RT-B48HBT offers a 25-year product warranty on material and workmanship defects, as well as a 30-year linear performance warranty with a maximum annual degradation of 0.4%. This ensures that after 30 years, the output will still be at least 87.4% of the rated power.
