Item No.: 2006300039

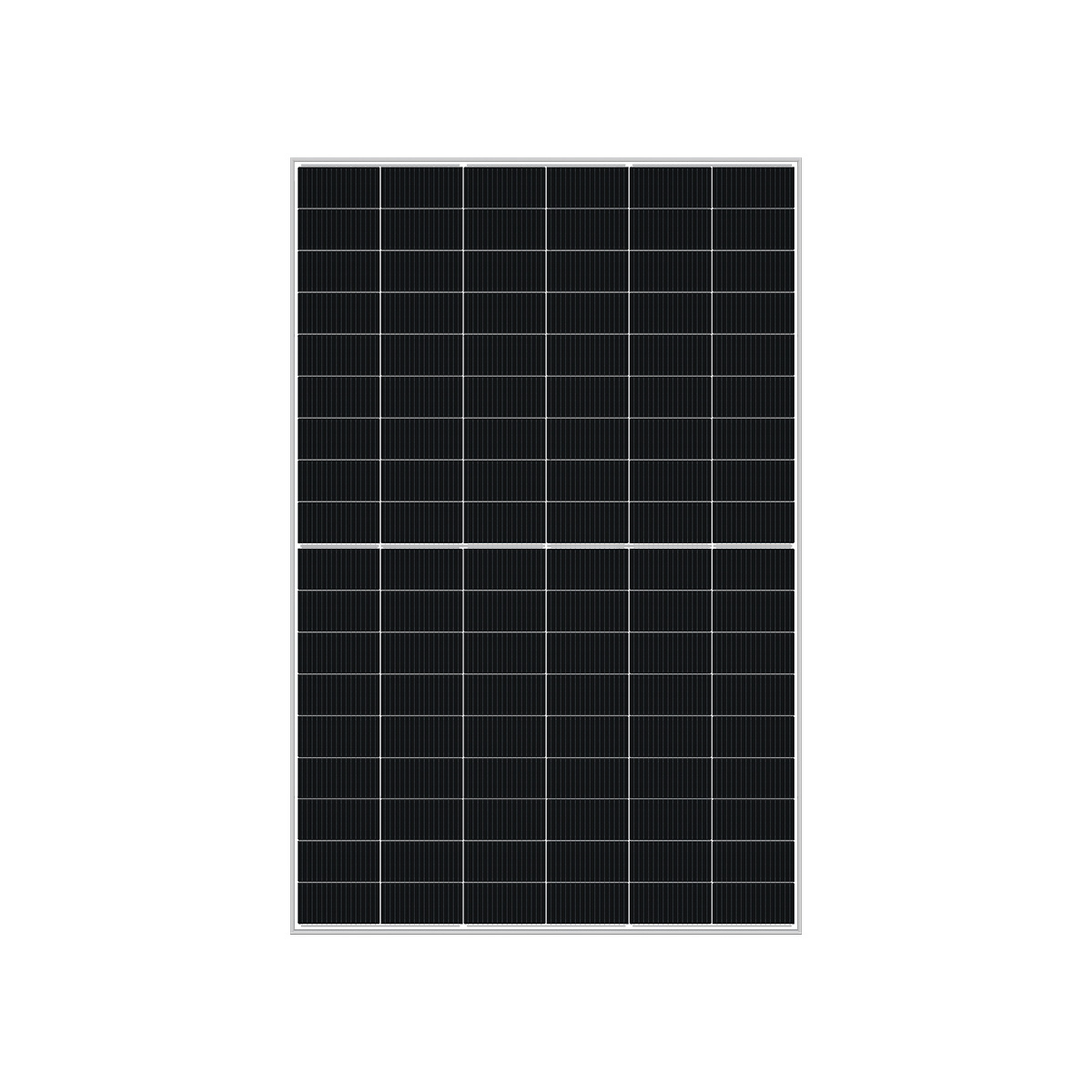

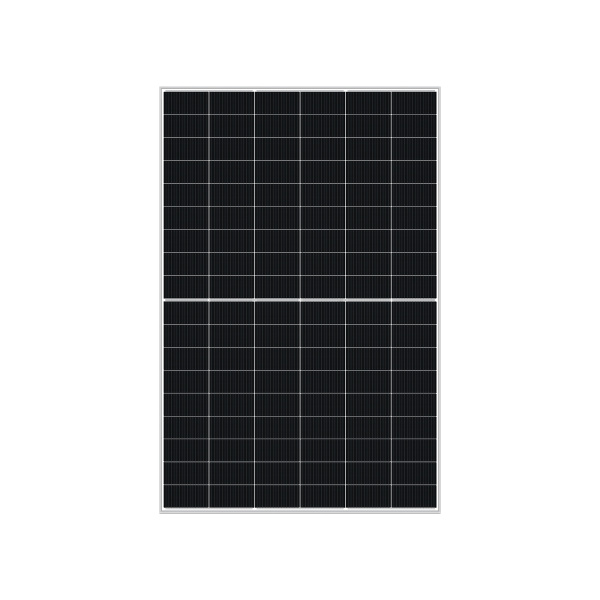

DMEGC GH435M10T-B54HST
glass/glass, transparent, abZ
available
Merkmale
Length [mm]
1,722
Width [mm]
1,134
Height [mm]
30
Weight [kg]
23,6
Type of DC-connector
EVO2A
max. System Voltage [V]
1,500
Module Efficiency [%]
22,3
Number of cells
108
Cell technology
TOPCON
Length of connecting cable [m]
1,1
Current value String fuse [A]
30
Color backsheet
TRANSPARENT
Frame Colour
SILVER
Product warranty (years)
25
WEEE-Registrier-Nr. DE
50188598
Module design
HALF CELL
Nominal Power [Wp]
435
Max. design load pressure [N/m²]
3,600
Max. design load tension [N/m²]
1,600
Description
This is a module with abZ (General Building Authority Approval). It can be used for overhead applications, e.g., for carports. Its not usuable for the facade.

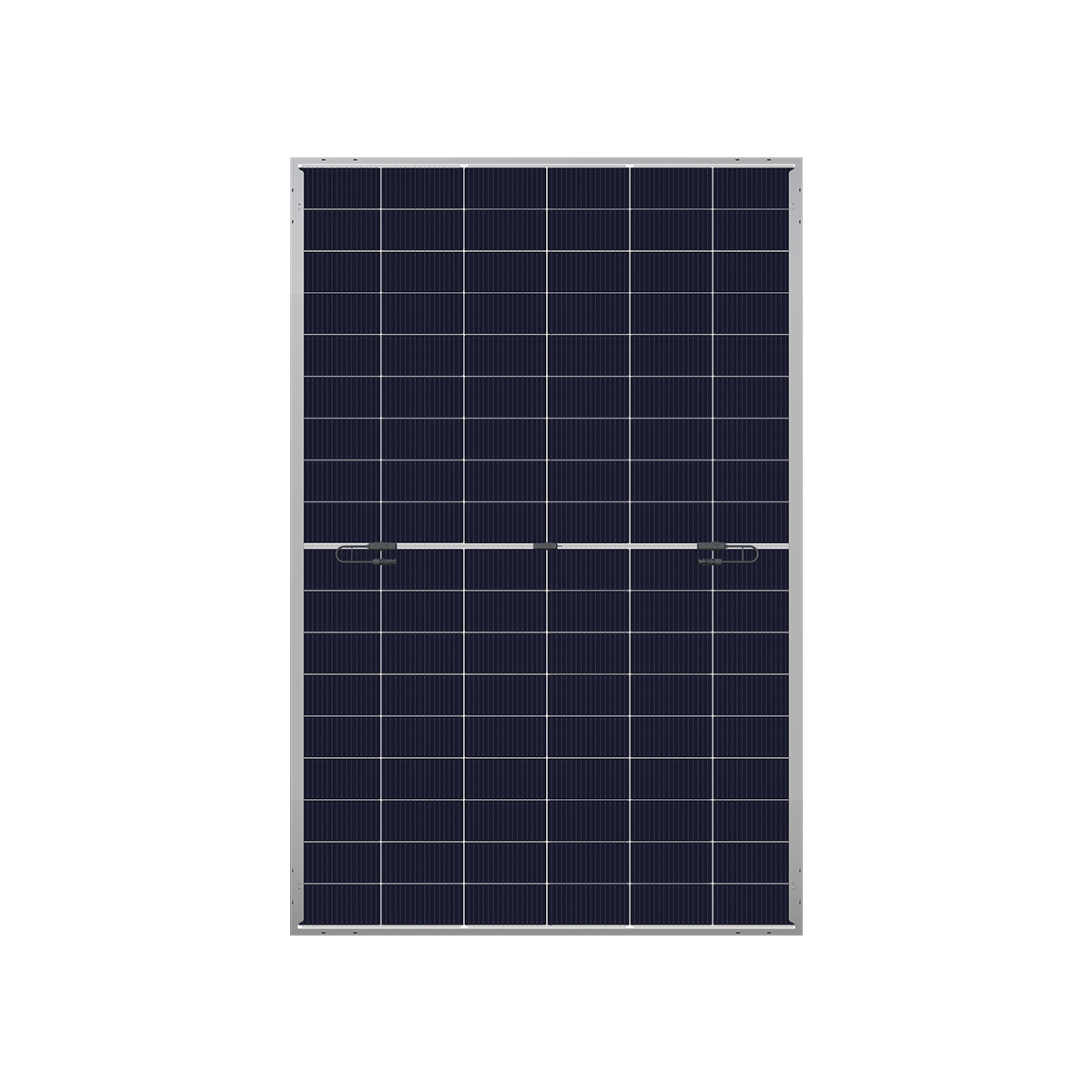

The DMEGC GH M10T‑B54HST is a high-quality bifacial glass‑glass solar module with N-type monocrystalline cells. It was specifically developed for translucent installations such as greenhouses, possesses DIBt approval for overhead mounting, and achieves up to approx. 481 Wp output with double-sided yield.
Module TechnologyThe module utilizes N-type TOPCon technology with monocrystalline cells, offering higher efficiency, lower degradation, and better performance in low-light conditions. Due to the bifacial glass-glass construction, it can utilize light from both sides, significantly increasing energy yield compared to conventional modules.
QualityDMEGC modules are known for high-quality workmanship, reliability, and efficiency. They are Bloomberg Tier 1 listed, have been multiple-time winners of "Top Performer" in independent tests, and received top marks for mechanical load capacity, temperature coefficient, and PID resistance, confirming their durability and quality.
SustainabilityDMEGC modules are particularly sustainable, as their production is 100% powered by renewable energy and the plants are certified by TÜV SÜD as CO₂-neutral. Furthermore, all products are PFAS-free, RoHS and REACH compliant, feature a low carbon footprint (EPD, PEP, ISO14067 certificates), and the company has been awarded the EcoVadis Silver Medal for its ESG performance.
WarrantyThe durable design with a 25-year product warranty and a 30-year linear performance warranty (at least 87.4% after 30 years) makes it particularly attractive for sustainable photovoltaic projects.
