Remaining stock
Item No.: 2002800208

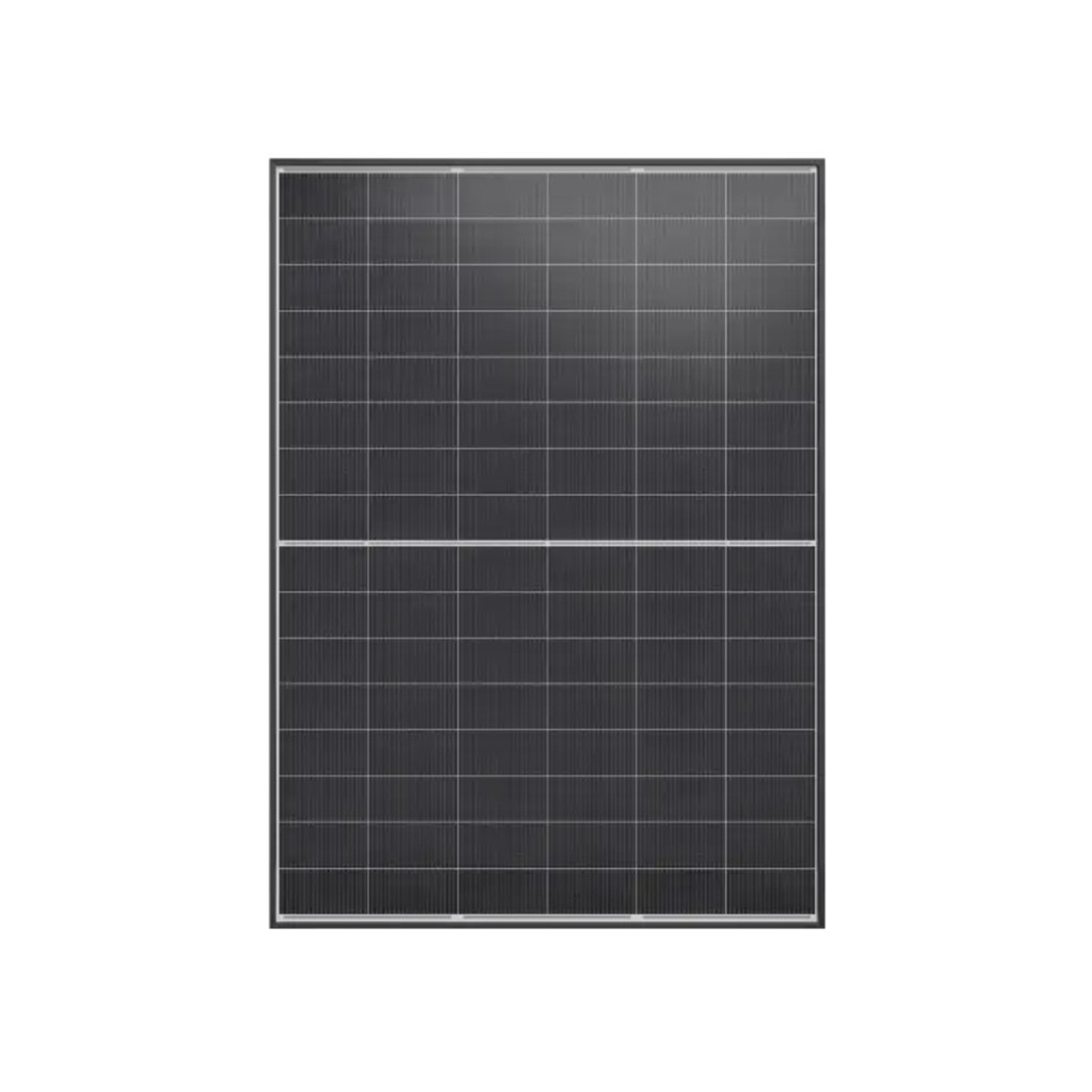

Jinko JKM460N-48HL4M-DV
glass/glass, white, EVO2A, Tiger Neo, PPE2
1 Piece available
Merkmale
Length [mm]
1,762
Width [mm]
1,134
Height [mm]
30
Weight [kg]
24
Type of DC-connector
EVO2A
max. System Voltage [V]
1,500
Module Efficiency [%]
23,02
Number of cells
96
Cell technology
TOPCON
Length of connecting cable [m]
1,2
Current value String fuse [A]
30
Color backsheet
WHITE
Frame Colour
BLACK
Product warranty (years)
15
WEEE-Registrier-Nr. DE
26287070
Module design
HALF CELL
Nominal Power [Wp]
460
Max. design load pressure [N/m²]
4,000
Max. design load tension [N/m²]
2,600
Description
This module holds a PPE2 certificate for the French market.
The Jinko 48HL4M-DV is a monocrystalline glass-glass solar module from the Tiger Neo series featuring N-type TOPCon technology, designed for high efficiency and low degradation. It offers an efficiency of up to 23.77% and utilizes 96 half-cells for optimized energy yields.
Module TechnologyThe Jinko 48HL4M-DV utilizes N-type TOPCon technology, which ensures high efficiency, low degradation, and better performance in low-light conditions. Additionally, it is designed as a glass-glass module with a half-cell layout, increasing mechanical stability and reducing heat generation, thereby extending the module's lifespan.
QualityJinko modules are renowned for their high efficiency, low degradation, and robust construction, ensuring stable performance even under extreme conditions. They meet international quality standards, offer up to a 30-year linear power warranty, and utilize innovative technologies like N-type TOPCon for maximum reliability.
SustainabilityJinko modules promote sustainability through their long lifespan and high efficiency, significantly reducing material consumption and CO₂ emissions per kilowatt-hour generated. Furthermore, Jinko focuses on environmentally friendly production with a high proportion of renewable energy and recycling initiatives to minimize the ecological footprint of its modules.
WarrantyThe Jinko 48HL4M-DV offers a 25-year product warranty covering material and workmanship defects. In addition, there is a 30-year linear power warranty, guaranteeing that the module's output will still be at least 87.4% of its nominal power after 30 years.
