New
Item No.: 2002800200

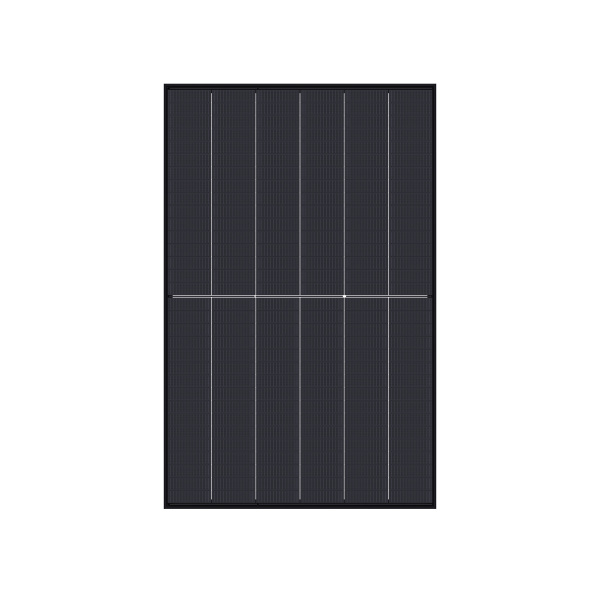

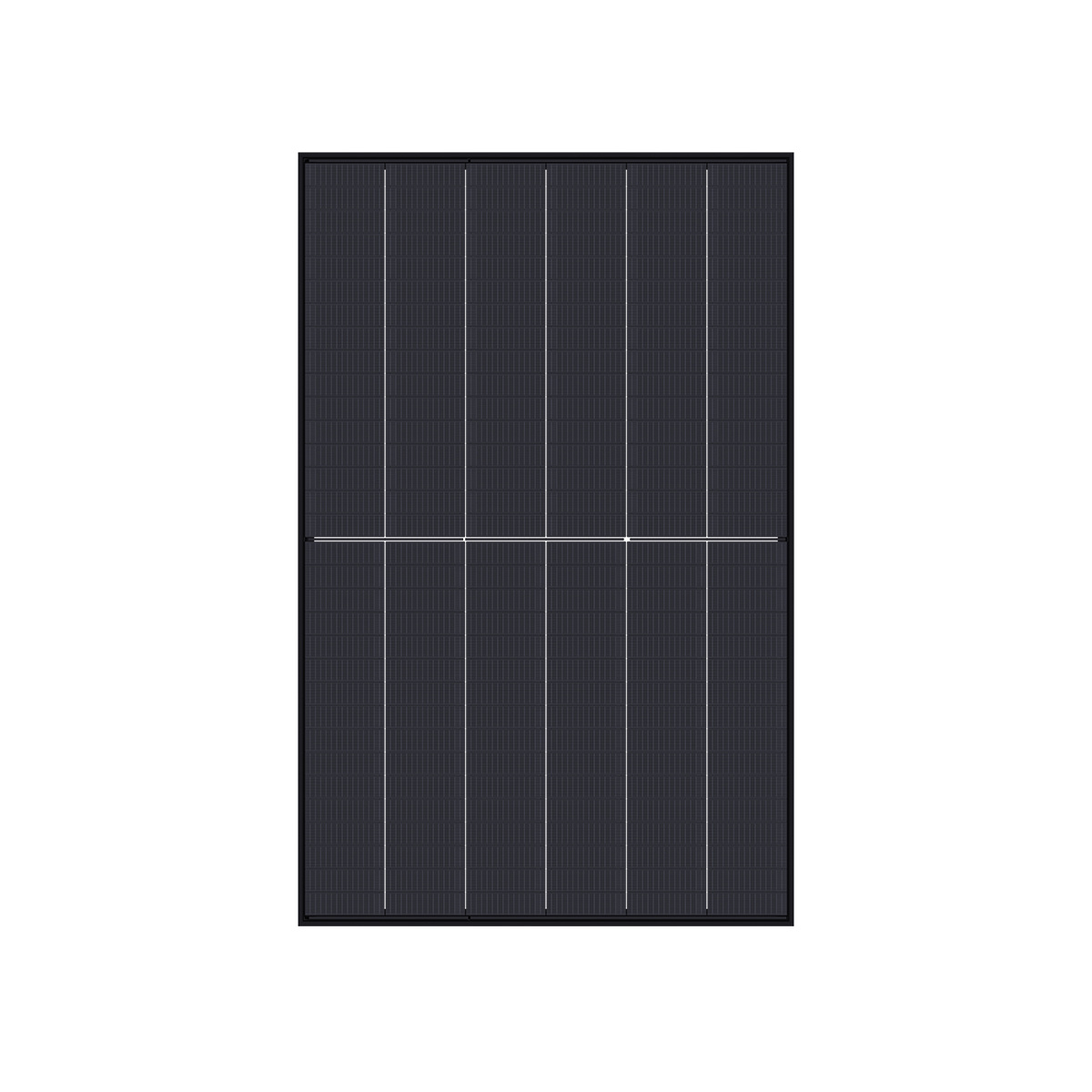

Jinko JKM470N-48QL6-DB
glass/glass, black, EVO2A, Tiger Neo 3.0
available by week: 32/2026
Merkmale
Length [mm]
1,762
Width [mm]
1,134
Height [mm]
30
Weight [kg]
24
Type of DC-connector
EVO2A
max. System Voltage [V]
1,500
Module Efficiency [%]
23,52
Number of cells
192
Cell technology
TOPCON
Length of connecting cable [m]
1,4
Current value String fuse [A]
30
Color backsheet
BLACK
Frame Colour
BLACK
Product warranty (years)
25
WEEE-Registrier-Nr. DE
26287070
Module design
QUARTER CELL
Nominal Power [Wp]
470
Max. design load pressure [N/m²]
4,000
Max. design load tension [N/m²]
2,667
Power/area [Wp/m²]
235
Description
Rated power: 470 Wp
monocrystalline cell
LxWxH: 1762x1134x30 mm
Power tolerance: 0 / +3 %
Max. surface load: 4,0 kPa
Connector type: EVO2A
Module efficiency: 23,52 %
IEC 61215 certified
IEC 61730 certified
Glass: Anti Reflective Coating (ARC)
Please refer to the latest warranty document of the manufacturer.
monocrystalline cell
LxWxH: 1762x1134x30 mm
Power tolerance: 0 / +3 %
Max. surface load: 4,0 kPa
Connector type: EVO2A
Module efficiency: 23,52 %
IEC 61215 certified
IEC 61730 certified
Glass: Anti Reflective Coating (ARC)
Please refer to the latest warranty document of the manufacturer.
