New
Item No.: 3602000129

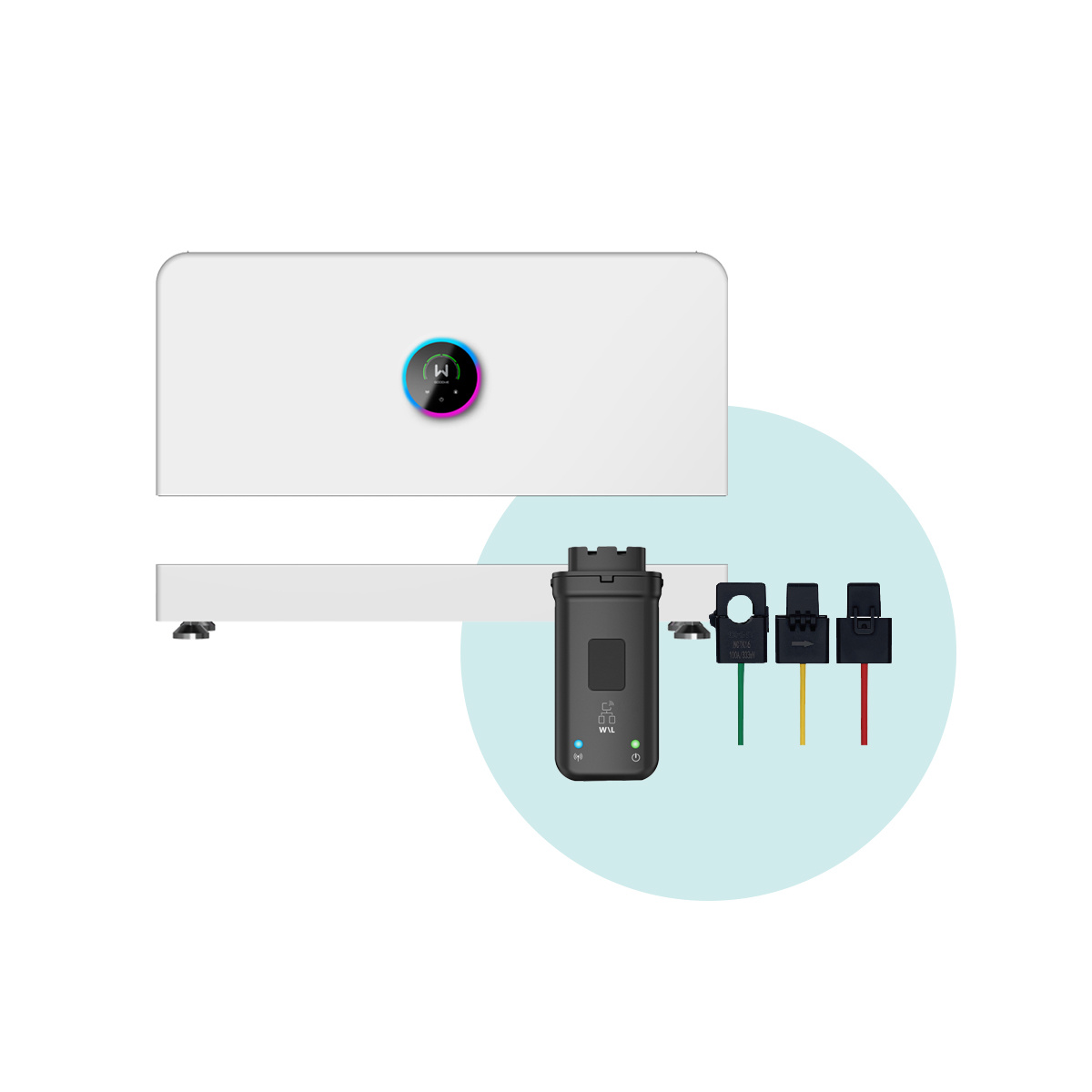

Goodwe GW10K-EHA-G20 (matt)
hybride inverter 1~
available by week: 38/2026
Merkmale
Depth [mm]
270
Width [mm]
800
Height [mm]
300
Weight [kg]
26
Type of DC-connector
MC4
max. input voltage [V]
600
AC-nominal power [VA]
10,000
DC-nominal power [W]
10,000
max. efficiency [%]
97,5
number of grid input phases
1
number of MPP-trackers
4
protection rating
66
WEEE-Registrier-Nr. DE
33154372
Description
ESA 10 kW (GW10KEHA G20)
Nominal AC power: 10.0 kW
Max. PV input power: 20.0 kW
Battery charging/discharging power: 13.5 / 11.0 kW
4 MPPTs, 4 strings
Backup power: 10.0 kVA (20.0 kVA for 10 s)
Max. efficiency: 97.5 %
Nominal AC power: 10.0 kW
Max. PV input power: 20.0 kW
Battery charging/discharging power: 13.5 / 11.0 kW
4 MPPTs, 4 strings
Backup power: 10.0 kVA (20.0 kVA for 10 s)
Max. efficiency: 97.5 %
