Item No.: 3601200028

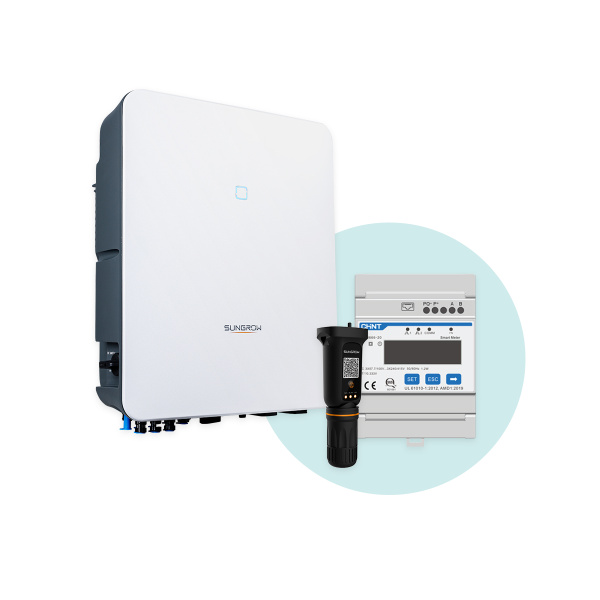

Sungrow SH10.0RT-20 V11
Hybrid Inverter 3~
available
Merkmale
Depth [mm]
170
Width [mm]
460
Height [mm]
540
Weight [kg]
27
Type of DC-connector
MC4
max. input voltage [V]
1,000
AC-nominal power [VA]
10,000
DC-nominal power [W]
10,215
max. efficiency [%]
98,4
number of grid input phases
3
number of MPP-trackers
2
Inverter technologie
HYBRID INVERTER
protection rating
65
WEEE-Registrier-Nr. DE
28316743
Description
Sungrow inverters in combination with Tigo optimizers: Please note that Sungrow currently only allows 20% Tigo assembly per string. More than that may result in a possible undervoltage on the string.
