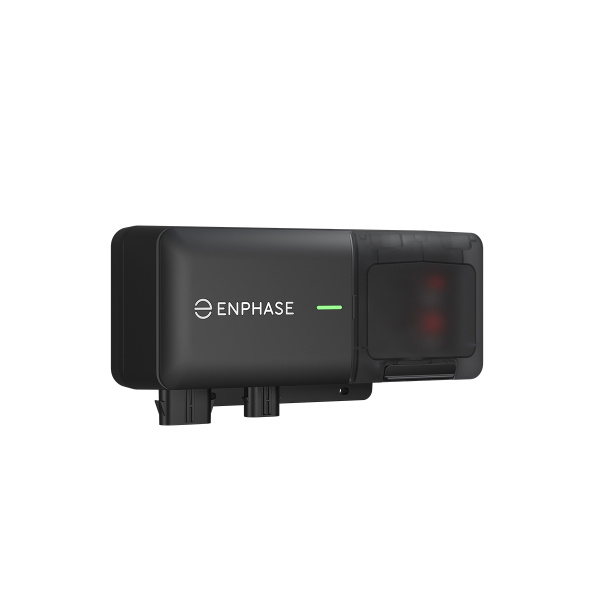

Enphase IQ Balcony Kit WiFi

The Enphase IQ Balcony Kit WiFi is a plug-and-play AC PV micro system for small applications that does not require a separate IQ Gateway or Q-Relay. The kit combines the IQ Balcony Gateway with WiFi connectivity and two IQ8HC microinverters. The system architecture is designed for easy installation via a Schuko socket and at the same time allows grid-parallel operation as well as limited off-grid use via an integrated auxiliary socket. Thanks to the microinverter topology, each module operates independently, which leads to more stable yields, particularly in cases of partial shading or unequal module tilt angles. The system is limited to a maximum of 800VA AC feed-in and can be expanded to up to seven IQ8HC units.

• TechnologyThe system is based on Enphase’s typical microinverter architecture using IQ8HC devices, in which DC/AC conversion takes place directly at the module level. Each IQ8HC processes up to 380VA of AC nominal power with a maximum efficiency of 97.5% and is designed for DC module voltages of up to 60V. The single-phase AC feed-in of the overall system is designed for 760VA nominal and normatively limited to 800W, ensuring compliance with the applicable regulations for plug-in PV systems. The IQ Balcony Gateway handles power limitation, grid coupling, and local energy distribution to the auxiliary socket.

  Key technical features
  • Microinverter topology with individual module control reduces yield losses during partial output and simplifies string planning.
  • AC-side power limitation in the gateway enables operation without a separate grid and system protection device.
  • Passively cooled inverters with IP67 protection are designed for continuous outdoor use.
• ConnectivityCommunication within the system is handled via integrated Enphase powerline technology between the microinverters and the gateway. The IQ Balcony Gateway connects to the internet via WiFi and enables system monitoring, commissioning, and firmware management. The wireless connection reduces installation effort, particularly in existing buildings or temporary applications, as no additional network cabling is required.

  Communication functions
  • WiFi connectivity of the gateway allows monitoring, performance analysis, and system diagnostics via Enphase platforms.
  • Powerline communication between IQ8HC and gateway avoids additional data cabling on the DC or AC side.
• WarrantyThe IQ8HC microinverters included in the kit come with a standard product warranty of 25 years, representing long-term operational reliability for module-level power electronics in the market. The IQ Balcony Gateway is covered by a 5-year product warranty. The differing periods reflect the different thermal and electrical loads on the components.
• SustainabilityThanks to the modular microinverter structure, the system can be sized according to demand and expanded step by step, avoiding oversizing and conserving resources. The high efficiency of the IQ8HC reduces conversion losses, while the long product lifespan reduces replacement cycles. The option of self-consumption via the integrated auxiliary socket increases the direct use of locally generated energy.

  Sustainability aspects in operation
  • High efficiency lowers systemic energy losses over the entire operating life.
  • Long warranty periods reduce material- and cost-intensive replacement measures.
• QualityThe components of the kit are designed according to industrial standards. The IQ8HC microinverters have IP67 protection and are protected against dust and temporary immersion, making them suitable for exposed outdoor installations. The IQ Balcony Gateway achieves IP65 and is therefore protected against water jets and foreign bodies. The MC4 DC connectors used and the AC-side design for 230V single-phase operation comply with common installation standards.

  Relevant quality features
  • Robust enclosure design supports use in changing environmental conditions.
  • Passive cooling reduces wear parts and increases long-term reliability.
• ExpandabilityThe IQ Balcony system is designed for scalability. The gateway supports the operation of up to seven IQ8HC microinverters, allowing flexible adjustment of DC-side generator capacity while the AC feed-in power remains limited in compliance with standards. Expansion kits with additional IQ8HC units and connection cables enable easy retrofitting without intervention in existing structures or replacement of central components.

  Expansion in the system context
  • Retrofit microinverters allow phased expansion with unchanged grid connection.
  • The central gateway remains unchanged and continues to handle power limitation and monitoring.
